NEXT-TOUCH10-Dual Screen-POS-with-Printer

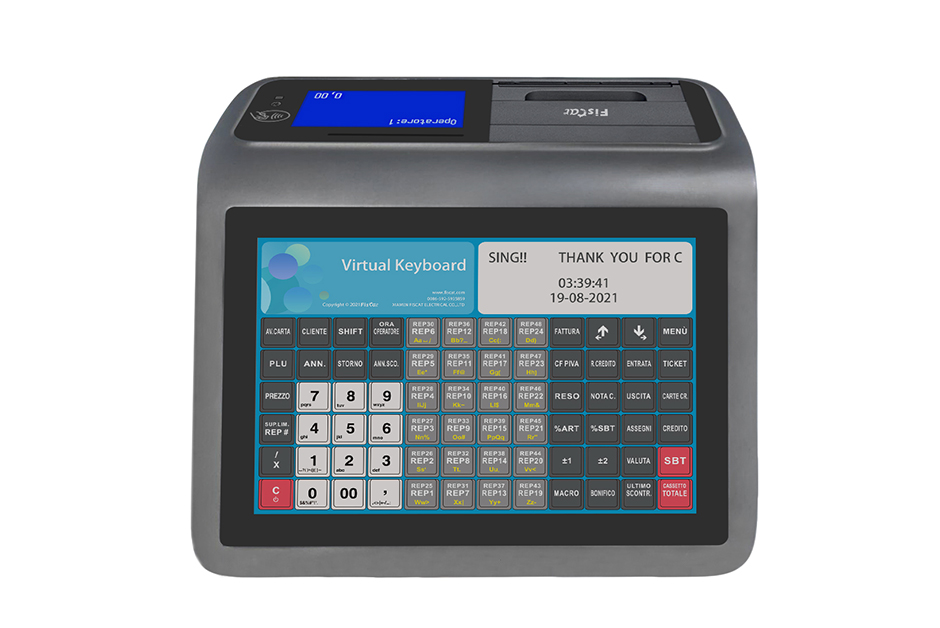

NEW-Generated-ALL-IN-ONE-POS-NEXT-TOUCH10

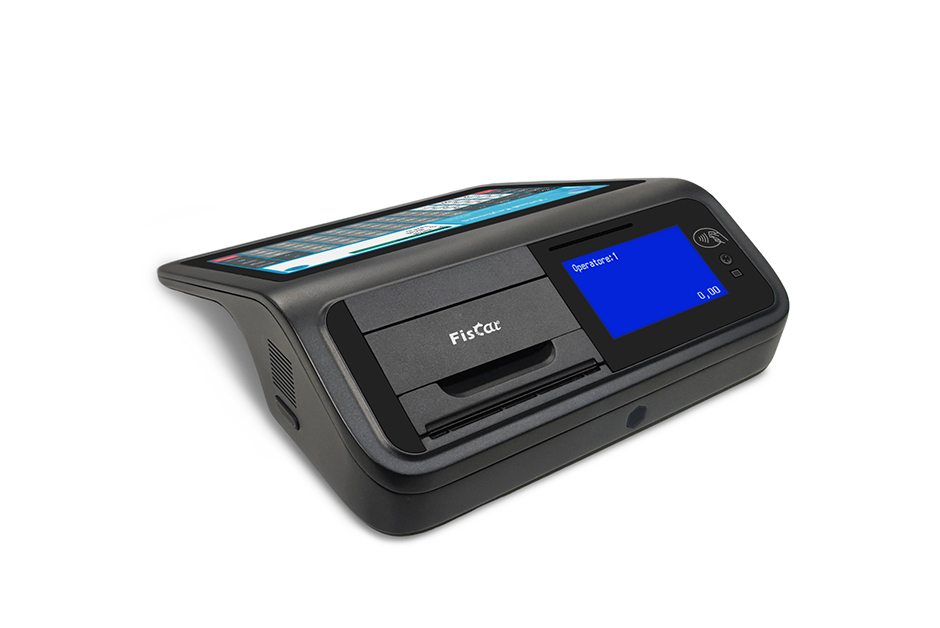

All-in-One Android POS System

The Ultimate Android POS Solution for Every Business

Powerful Performance

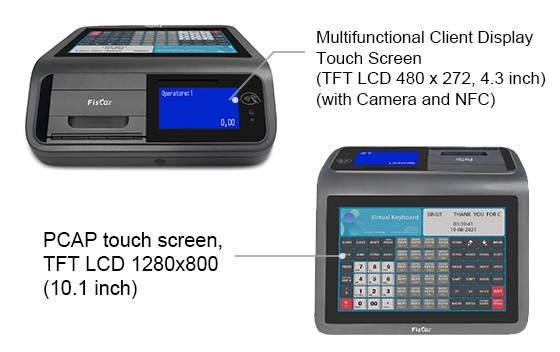

The NEXT TOUCH 10 runs on Android OS 14, offering enhanced security, user-friendly interface, and compatibility with the latest Android applications. Powered by an octa-core processor — quad-core Cortex-A72 and quad-core Cortex-A53 — it delivers lightning-fast multitasking and seamless processing even under heavy workloads. The device boasts a dual-screen design, featuring a 10.1-inch high-definition main touch screen for staff and a 4.3-inch touch screen for customers, delivering an intuitive and visually engaging user experience for both parties. Notably, the 4.3-inch client display can be augmented with a camera and NFC module, enhancing its functionality and making it perfectly suited for direct customer interaction.

Build-in 80mm high speed auto-cutter thermal printer

High-speed integrated printer with automatic cutter for seamless receipt handling

Multiple Payment Methods

Next Touch 10 hardware supports multiple payments to ensure stable and efficient payment processing
•Contactless
•Chip & PIN
•QR Code Payment
Mobile Payment

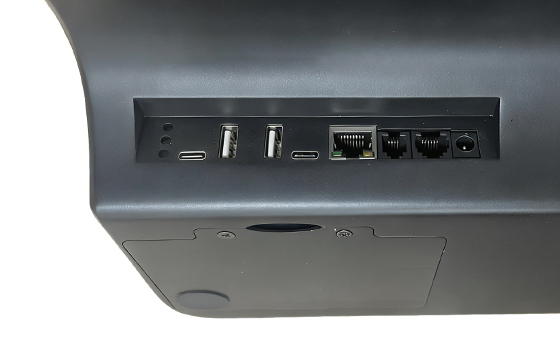

Comprehensive Connectivity & Expandability

The NEXT TOUCH 10 has a wide range of communication interfaces to ensure flexibility across various usage scenarios:
• 4G LTE • NFC • Bluetooth • Wi-Fi
• RS232 • Ethernet • USB • Drawer

Long-lasting performance

• Massive 20,000mAh Lithium battery, ensuring long-lasting performance for extended hours of operation

Specifications

Android Part	Processor		quad-core Cortex-A72 and quad-core Cortex-A53
	Operating System		Android 14
	Working memory RAM		LPDDR4X 4GBytes
	System memory ROM		eMMC 5.1 32GBytes
	Operator Display		PCAP touch screen,TFT LCD 1280x800(10.1 inch)
	I/O Interfaces	USB OTG	Type C
		USB HOST	USB 2.0 Type A
		USB HOST	USB 3.0 Type A
		RS232	RJ11
		Ethernet	RJ45 10/100M
		Wi-Fi	Wi-Fi 5 IEEE802.11 a/b/g/n 2.4G&5G
		BlueTooch	BT 5.2/4.2LE/2.1 + EDR
	Optional Modules	NFC	Type A&B Card，Mifare Card,Felica Card, ISO/IEC 14443, ISO 15693
		GPRS	4G-LTE CAT4
		Camera	1/4-inch 8-megapixel Cmos Camera Module Auto Focus
		GNSS	GPS/GLONASS/Galileo/BDS/QZSS
		Card Reader	ISO/IEC 7816, EMV and PC/SC standards
	Speaker		1*4W
Fiscal part	Processor		Cortex-A7
	Operating System		Linux 4.2
	Working memory RAM		DDR3 64MBytes
	System memory ROM		NandFlash 128MBytes
	Fiscal memory		MCU+4MB
	Encrypt Module		TPM2.0 EAL4+
	Electrical Journal		16G TF card
	Printer		Fast thermal printer 150mm/s,with auto cutter
	Paper roll		57/80mm width x 60mm diameter
	Customer display		TFT LCD 480x272(4.3inch), Optional (4.3inch touch)
Certificate			Google Mobile Services (GMS)
power supply			Ac input:110-230V,DC output DC 24V 2Ah
Battery(Optional)			Li-Battery 20000mAH
Dimensions (L x W x H)			274x280x75mm(LWH)
Weight			Around 1.7kg
Operating temperature			0°C – + 45°C
Storage temperature			-20°C – + 60°C
Accessory			Barcode Scanner 3308SR, 2208 SR
			Cash drawer CH330 / CH 410
