All-in-One POS System

everything you need to manage your point-of-sale

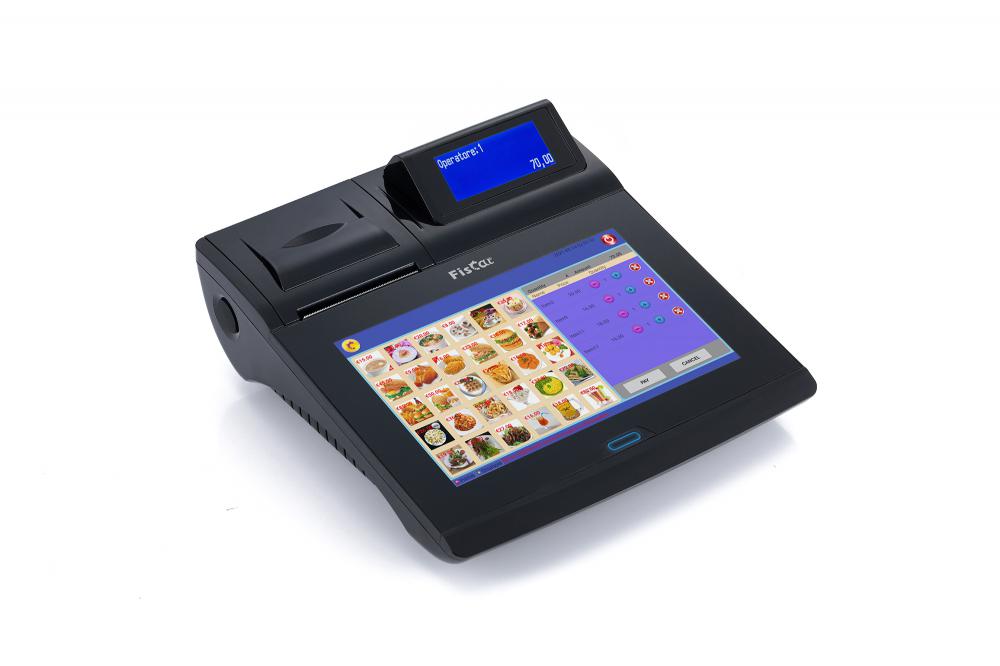

Super Touch

Everything you need to manage your point-of-sale. Super touch is a robust POS, all you need is to switch on! Inbuilt 10.1’ PCAP touch screen + high-light LCD customer display + 80mm fast printer with auto cutter + sophisticated inter-face, everything you need is provided all-in-One. Linux OS and Android OS platforms are available to support your different POS applications.

Highlight

advanced all-in-one ECR

Display

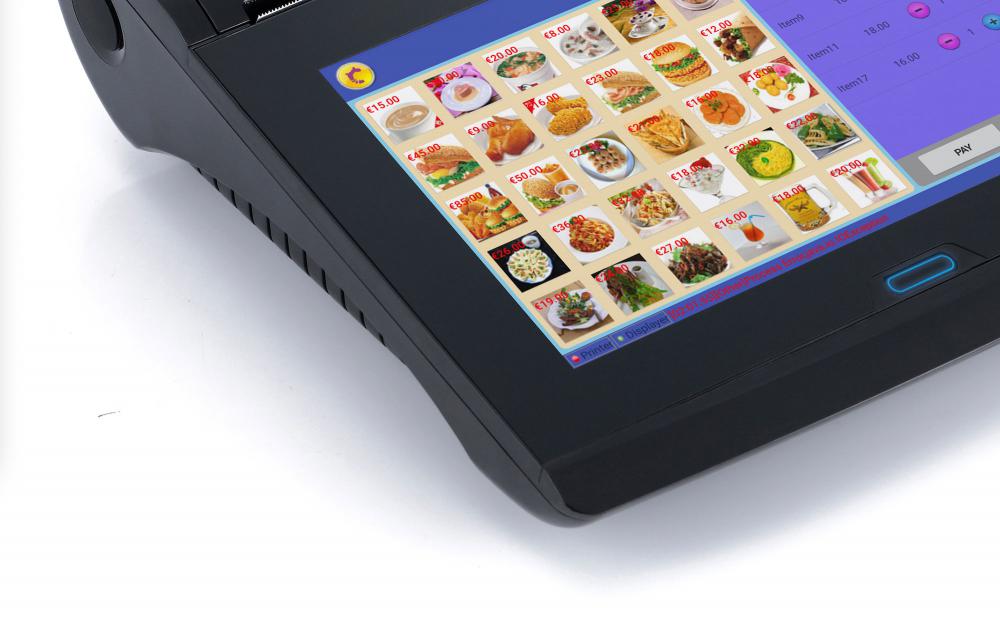

• 10.1’’ PCAP touch screen
• LCD display with blue backlight

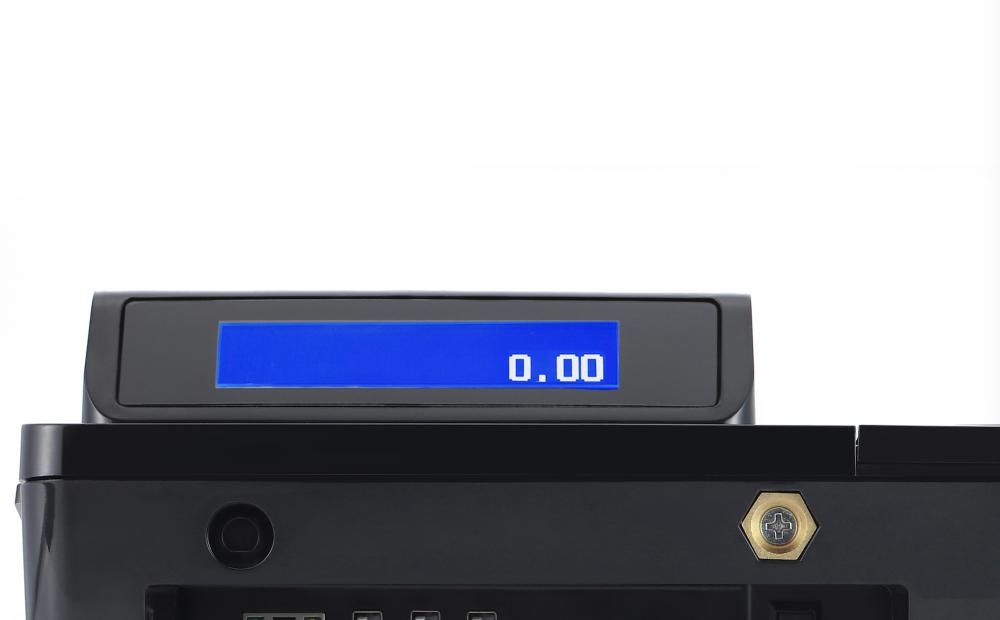

• Adjustable customer display

Printer

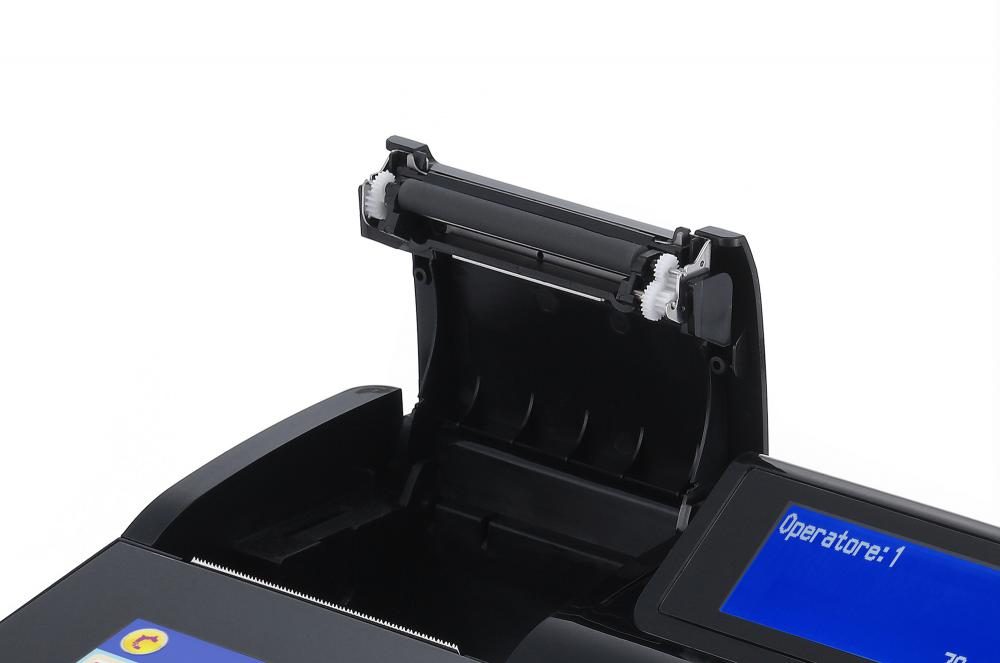

• easy-load paper design
• fast printing 100mm/s

Interface

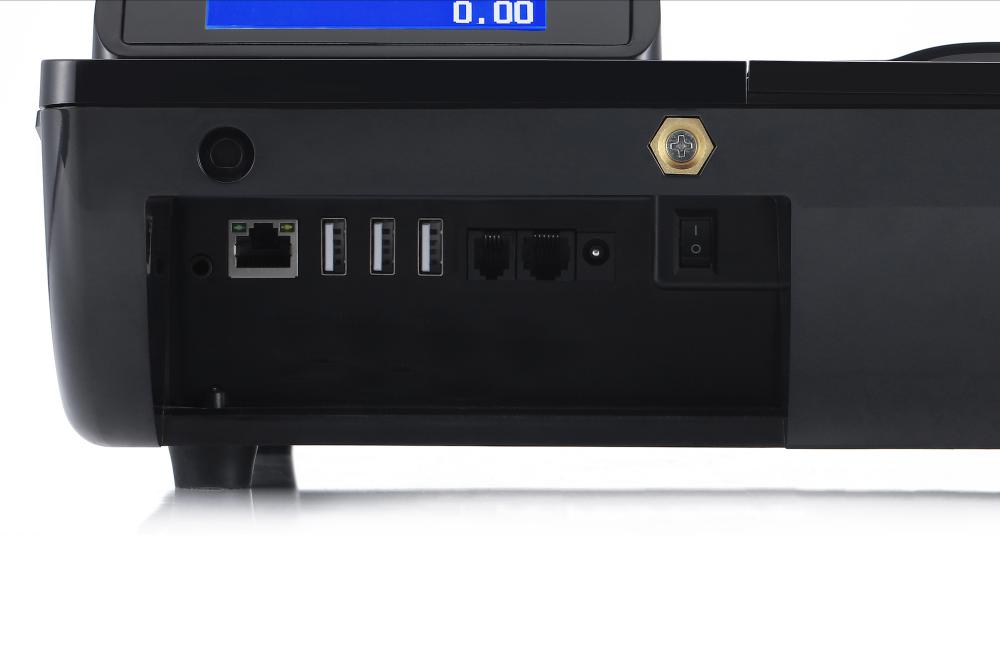

• sophisticated communication ports for various peripherals
• Wifi and bluetooth inbuilt
• GPRS inbuilt
• Customized for your needs

Specifications

Processor	ARM Cortex-A55 64Bit up to 2.0GHz
Working memory RAM	DDR3 2GB
System memory ROM	eMMC 16GB
Operating System	Android 11
Electrical Journal	16GB TF Card
Fiscal Memory	MCU + 4MB
Operator display	PCAP touch screen, TFT LCD 1280x800 (10.1 inch）
Customer display	LCD display(128x32) 2 lines*16 characters
Printer	fast thermal printer 150mm/s
Printer	Auto cutter 2 millions cuts
Paper roll	57mm/80mm width x 60mm diameter
keyboard	1 key (power button)
Interfaces	1*RS232
	1* Ethernet LAN, Type RJ-45×1 100Mbit
	2* USB host type A
	1* USB device type B
	1* Drawer port
Wifi	IEEE802.11 b/g/n
Bluetooth	Bluetooth 4.0
Optional Features	NFC module, ISO 14443 Part 4 Type A and B cards and MIFARE series
Optional Features	LTE 4G
Power supply	AC input: 110-230V, DC output: 24V, 2Ah
Main Battery	NONE
Dimensions (L x W x H)	308280110 mm (LWH)
Weigth	1.1kgs
Operating temperature	0°C – + 45°C
Storage temperature	- 20°C – + 60°C
Accessory	Cash drawer CH330 / CH 410
Accessory	Barcode Scanner 3308SR, 2208 SR
