Entry Level Mobile ECR

for outdoor business

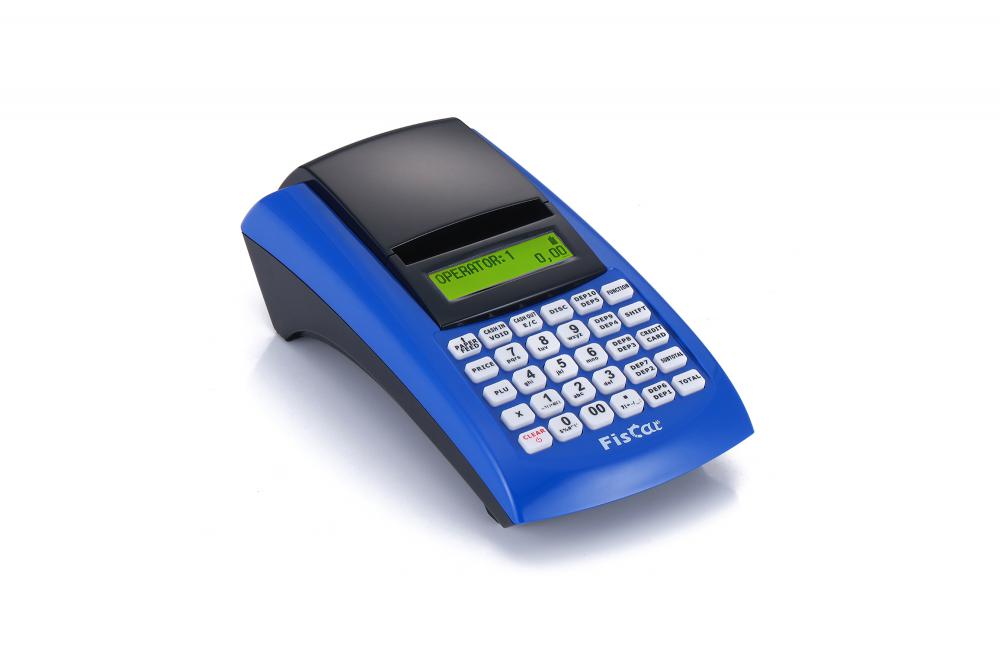

iPalm

is a mobile sales terminal, it can work in an open area, e.g. in bazaars, door-to- door selling and all kinds of services where a small device is required.

Highlight

incredible small, elegant design.

Display

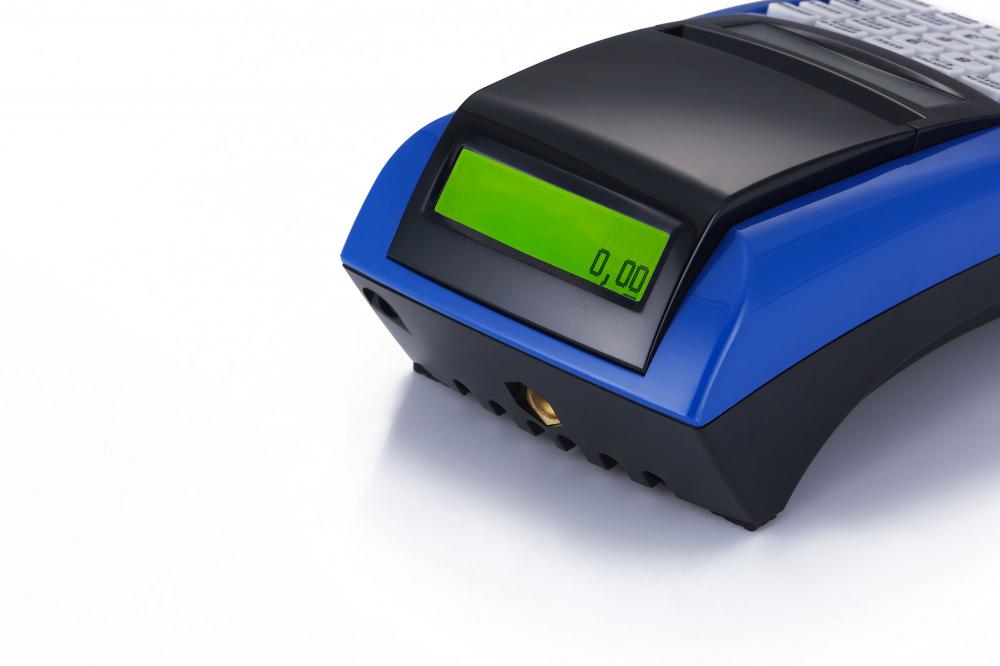

• 2 lines LCD display
• bright green backlit
• clear vision in darkness

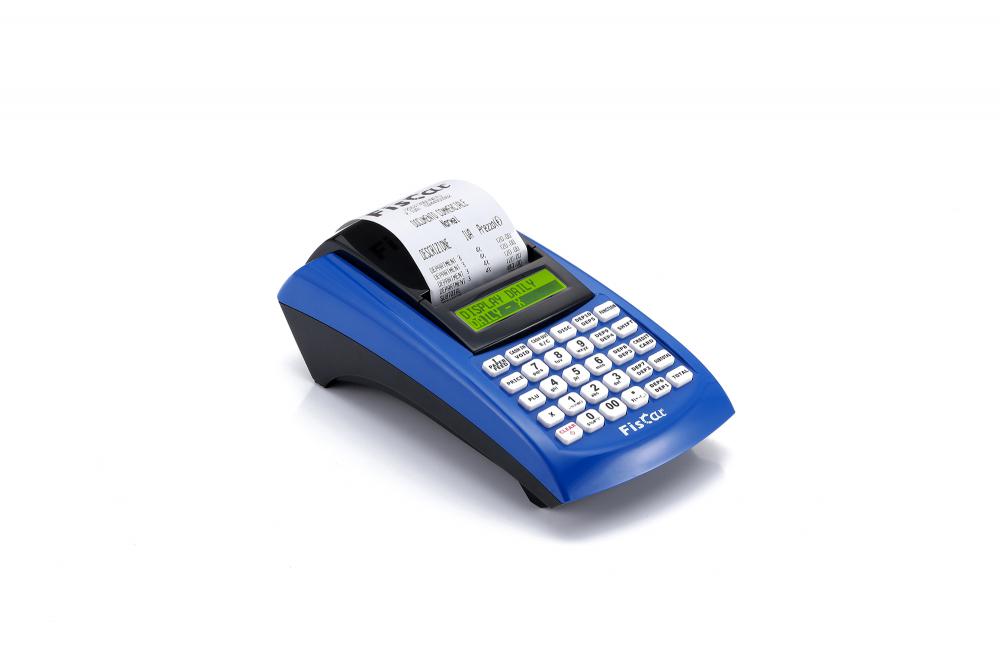

Printer

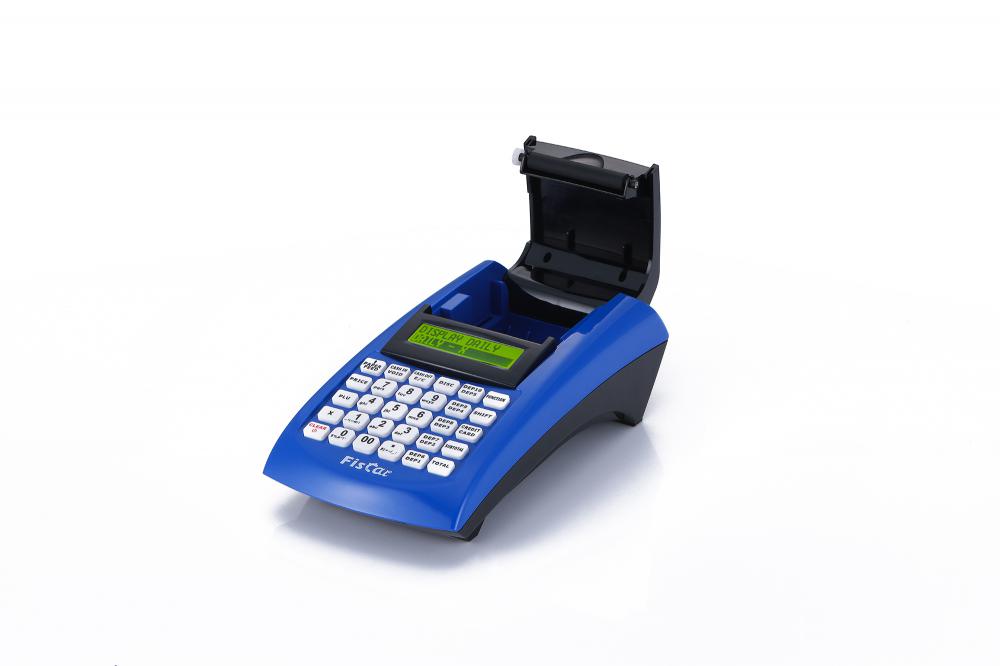

• easy-load paper design
• fast printing 130mm/s
• 58mm paper width

Keyboard

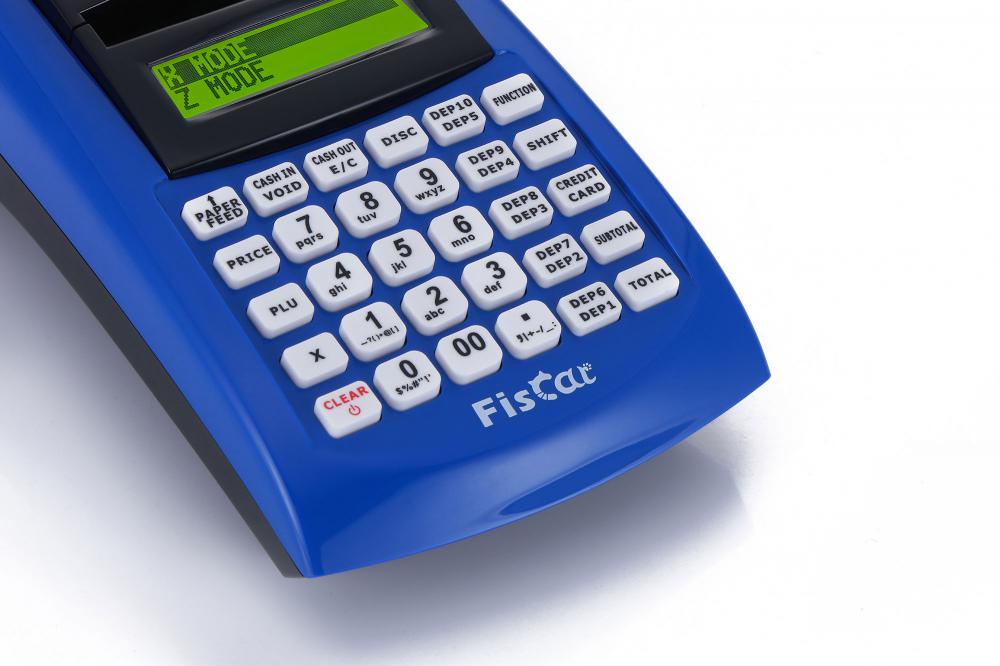

• water-resistant design for the open air work environment

Interface

• Versatile interface communication
• Wifi and bluetooth inbuilt
• GPRS inbuilt
• Customized for your needs

Battery

• Built in lithium battery guarantees least 6 hours stand-alone operation

Software tool

Our Poscat Manager.exe is to help your business setup without hassle. Easy setup, save ECR data with PC and your mobile devices.

Specifications

Processor	ARM9 300Mhz
Working memory RAM	32MB
System memory ROM	128MB
Operating System	Linux 4.2
Electrical Journal	16GB TF Card
Fiscal Memory	MCU + 4MB
Operator display	LCD display (128x32) 2 lines*16 characters
Customer display	LCD display (128x32) 2 lines*16 characters
Printer	Thermal printer 130mm/s
Paper roll	57mm width x 60mm diameter
keyboard	30 keys
Interfaces	1*RS232
	1* Ethernet LAN, Type RJ-45℅1 100Mbit
	1*drawer
	1*USB - OTG
Wifi	IEEE802.11 b/g/n
Optional Features	NFC module, ISO 14443 Part 4 Type A and B cards and MIFARE series
Optional Features	LTE 4G
Power supply	AC input: 110-230V, DC output: 12V, 1A
Main Battery	Lithium battery 7.4V, 2,6Ah
Dimensions (L x W x H)	2069671 mm (LWH)
Weigth	0.90 kgs
Operating temperature	0°C – + 45°C
Storage temperature	-20°C – + 60°C
Accessory	Cash drawer CH330 / CH 410
Accessory	Barcode Scanner 3308SR, 2208 SR
