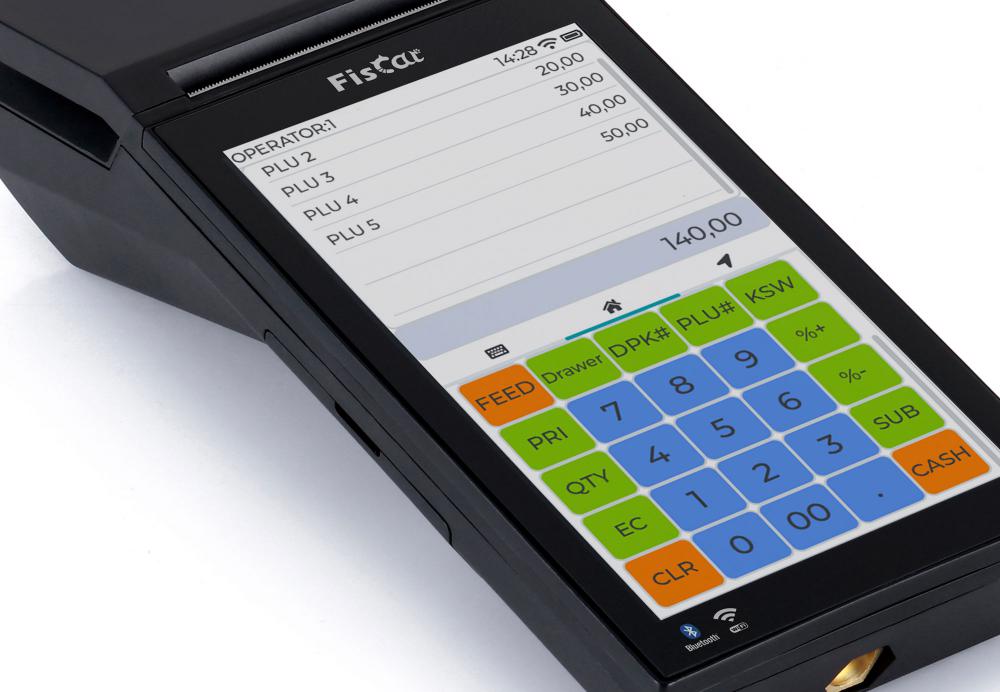

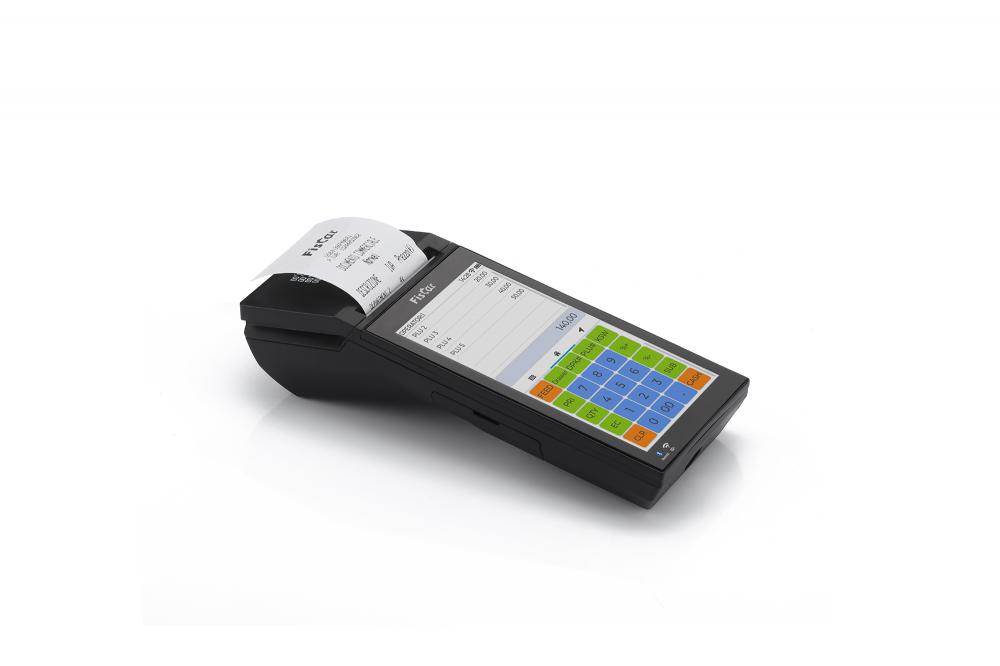

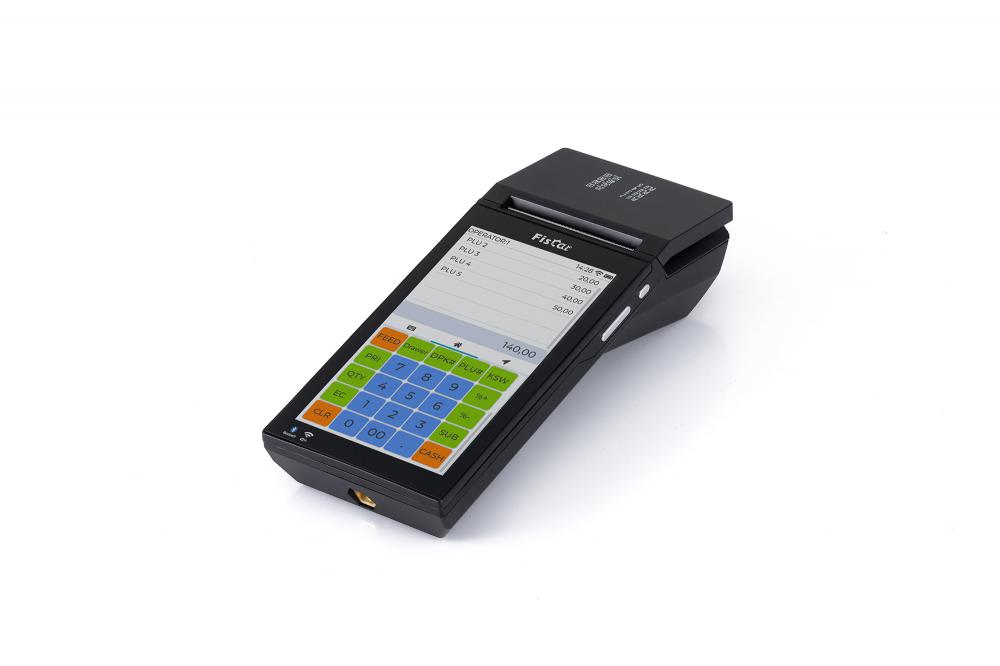

• 6’ inch PCAP touch screen

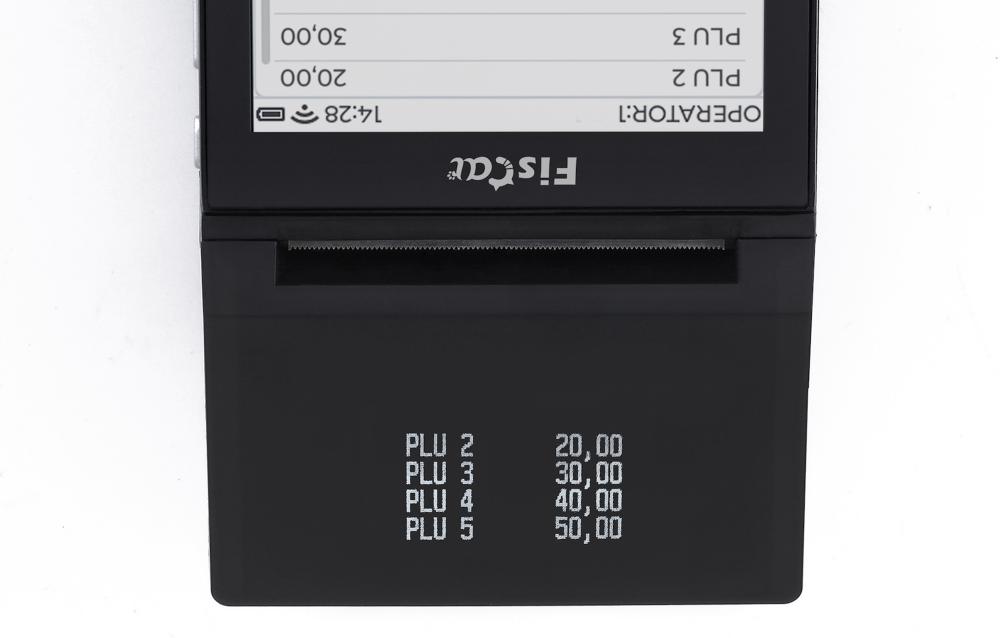

• OLED display, 4 lines highlight vision
• Fast print speed up to 100mm/s

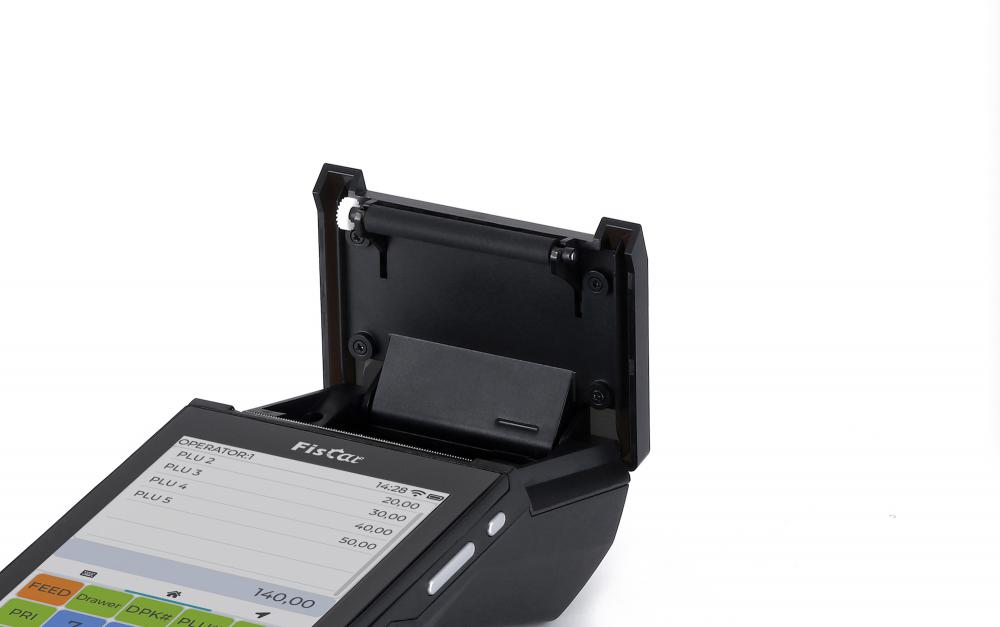

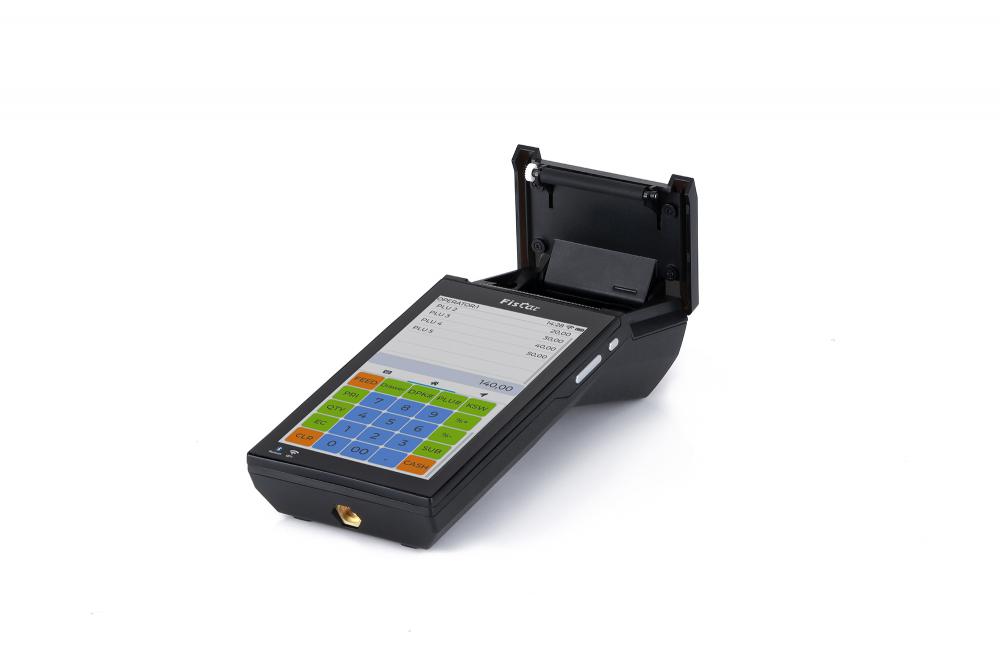

• easy-load paper design
• 57mm x 40mm paper roll

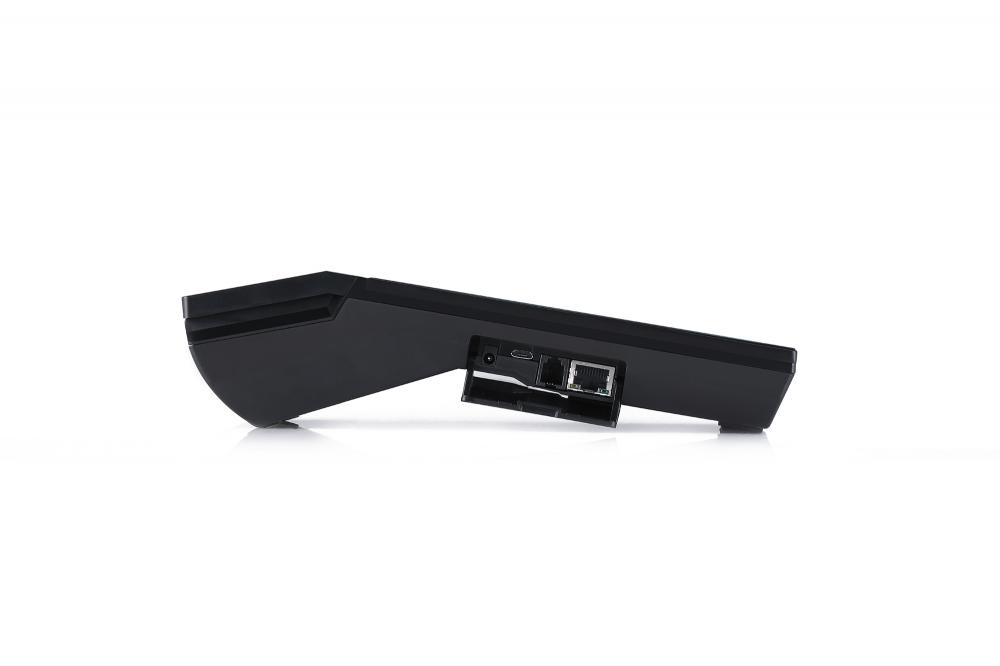

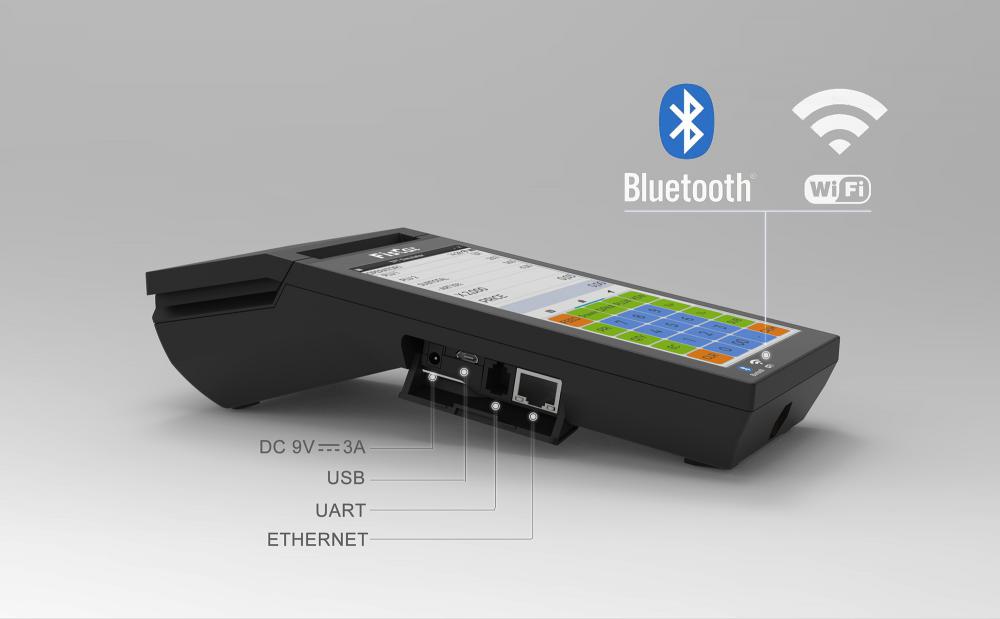

• Smart design of interface on the side
• 1 Ethernet, 1 mini USB, 1 RS232
• Wifi and bluetooth inbuilt
• NFC inbuilt
• GPRS inbuilt

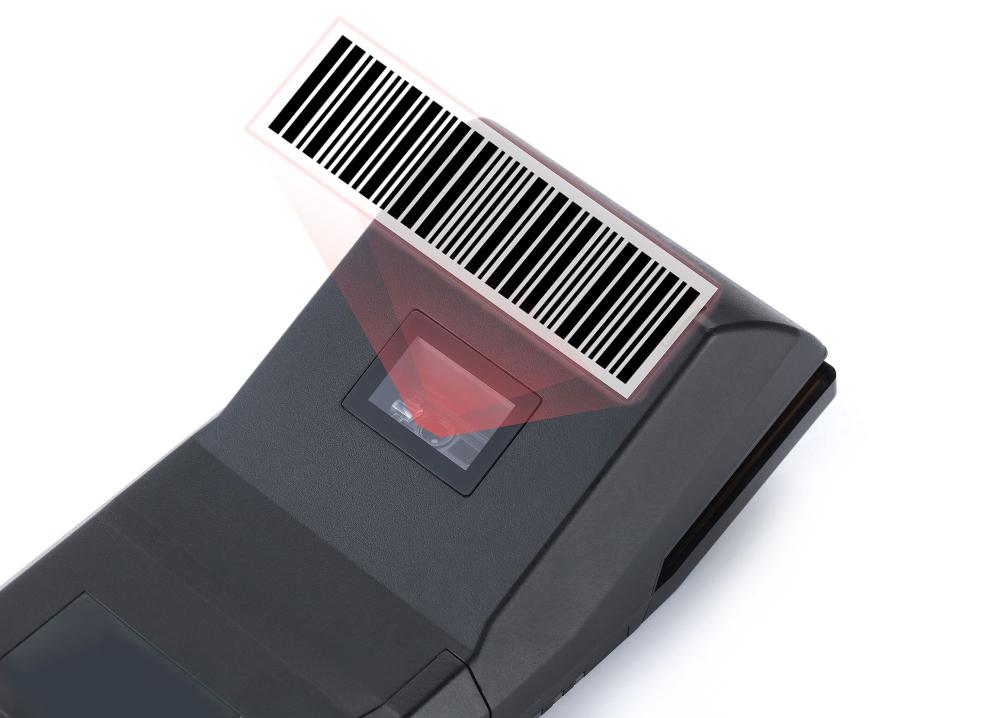

• inbuilt scan 1/2 D barcode
Processor | ARM Cortex-A35 64Bit 1.3GHz |
Working memory RAM | DDR3 2GB |
System memory ROM | eMMC 16GB |
Operating System | Android 8.1 / Linux Uboot / RedHat |
Electrical Journal | 16GB TF Card |
Fiscal Memory | MCU + 4MB |
Operator display | PCAP touch screen, TFT LCD 1280x720 (6 inch) |
Customer display | OLED display (64x128) 4 lines*16 characters |
Printer | Fast thermal printer 100mm/s |
Paper roll | 57mm width x 40mm diameter |
keyboard | 3 keys ( side buttons) |
Interfaces | 1*RS232 |
1* Ethernet LAN, Type RJ-45×1 100Mbit | |
1*USB - OTG | |
Wifi | IEEE802.11 b/g/n |
Bluetooth | Bluetooth 4.0 |
Optional Features | NFC module, ISO 14443 Part 4 Type A and B cards and MIFARE series |
GPRS module 2G/3G/4G | |
1/2 D Scanner, 1/4-inch 8-megapixel Cmos Camera Module Auto Focus | |
Power supply | AC input: 110-230V, DC output: 9V, 3A |
Main Battery | Lithium battery 7.4V, 2,6Ah |
Dimensions (L x W x H) | 222.5*89.2*58.5 mm (L*W*H) |
Weigth | 0.55 kgs |
Operating temperature | 0°C – + 45°C |
Storage temperature | -20°C – + 60°C |
Accessory | Cash drawer CH330 / CH 410 |
