HOME Product Fiscal Signature Device Fiscal E Signature Device
DataSign
OverviewTechnical Data
Portable Electronic Signature Device

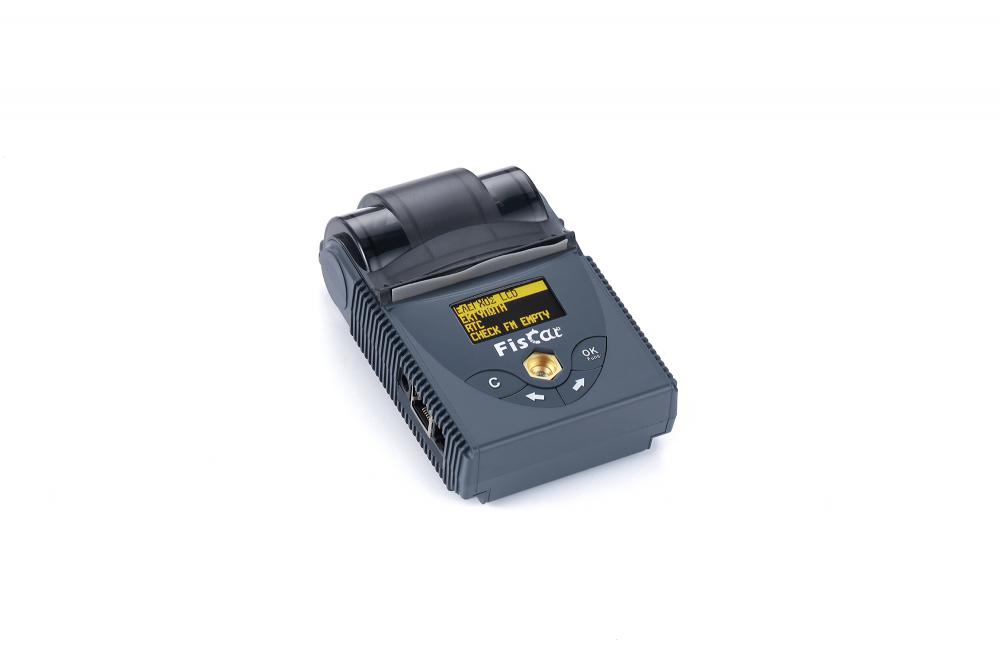

Wifi ESD

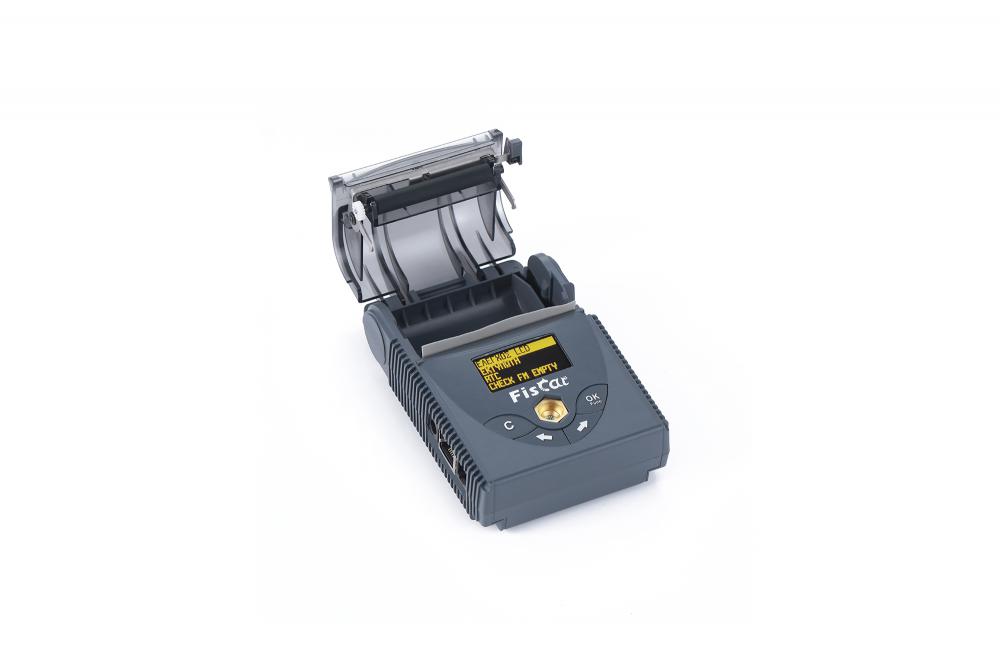

Fiscal 3G ESD

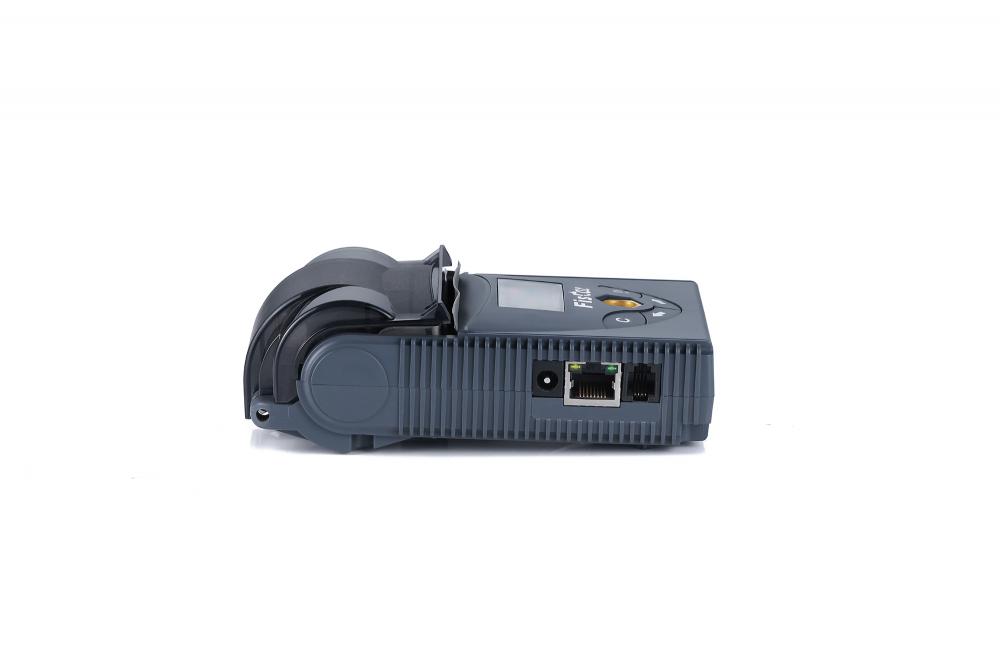

3G ESD

Fiscal E-Signature Device (ESD)

Portable Electronic Signature Device
Wifi ESD
Fiscal 3G ESD
3G ESD

DataSign

is our 1st generation fiscal signature device, it was the world’s smallest ESD when we first launched it year 2010, and it is still an state-of-art product today. To convert your non-fiscal POS system into fiscal system, without any hardware changes, we provide Driver A and Driver B for different business operations. It is a customized product for your project.

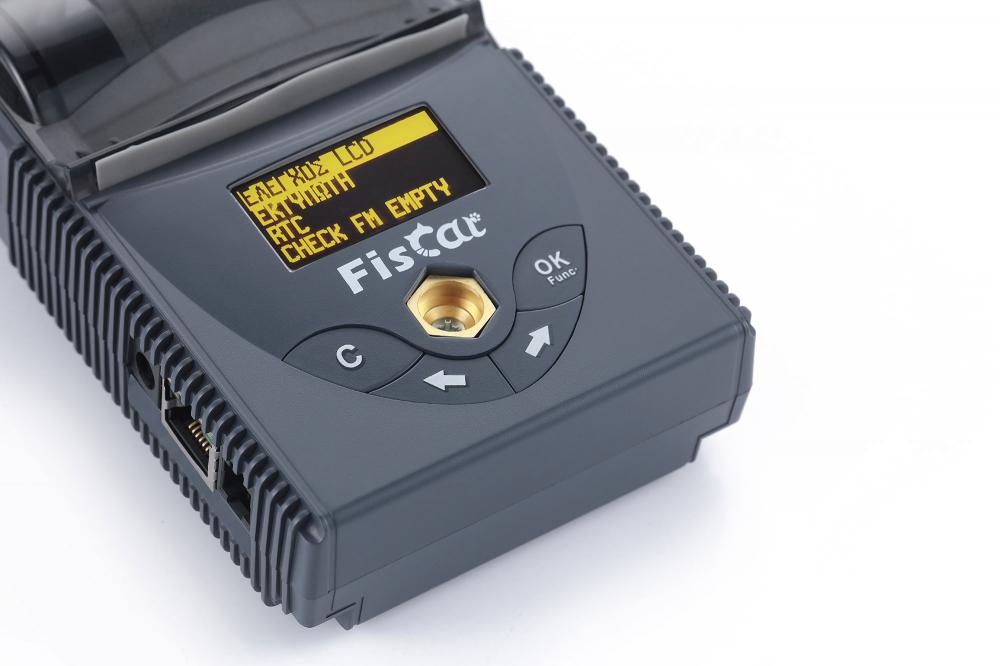

advanced all-in-one ECR

Highlight

advanced all-in-one ECR

Display

• highlight OLED display.

• 4-line display

• clear vision in darkness

• 4 key buttons for menu navigation

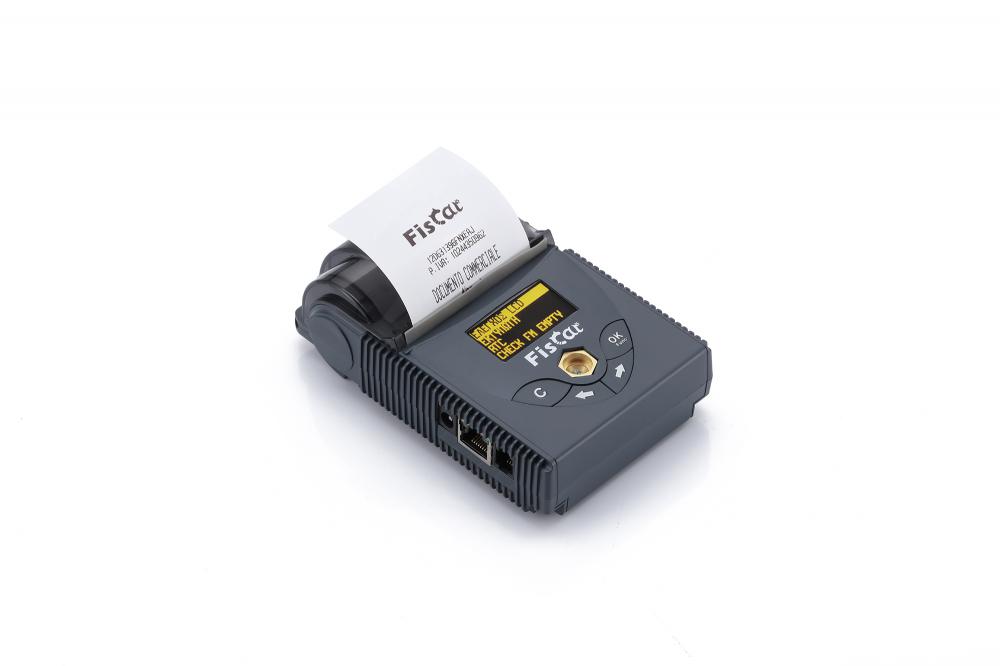

58mm Fiscal ESD

Printer

• easy-load paper design

• 58mm x 35 mm (diameter) paper roll

58mm Fiscal ESD

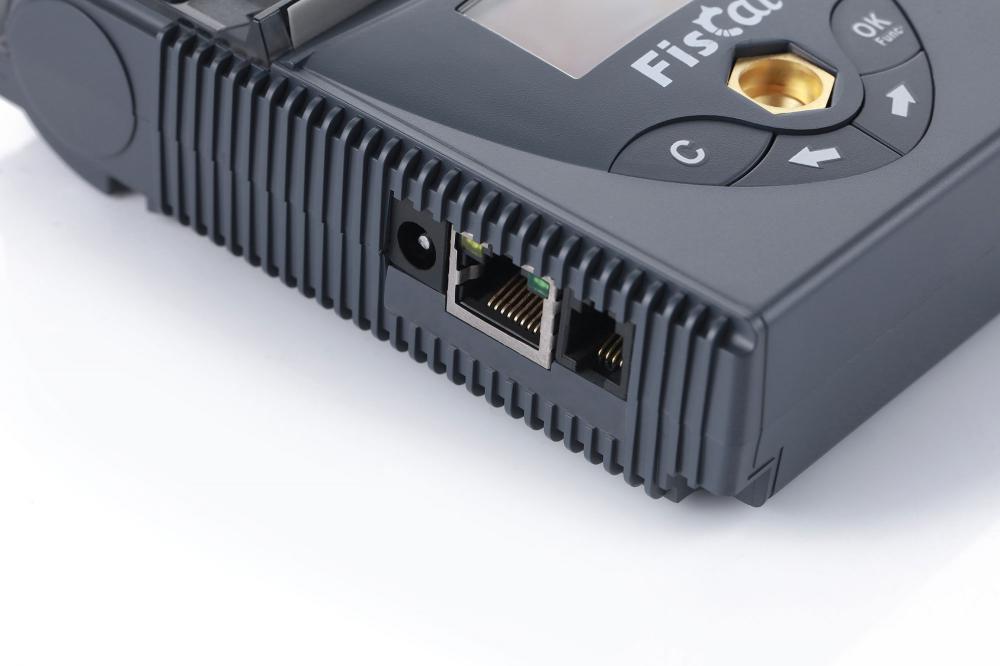

USB Fiscal ESD

Interface

• 1 ethernet

• 1 USB

• 1 RS232

• Wifi, bluetooth inbuilt

• GPRS inbuilt


Interface

• 1 ethernet

• 1 USB

• 1 RS232

• Wifi, bluetooth inbuilt

• GPRS inbuilt

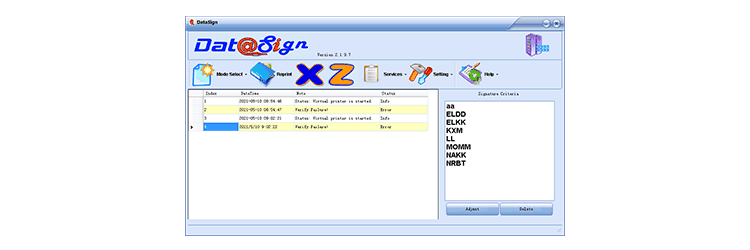

driver A

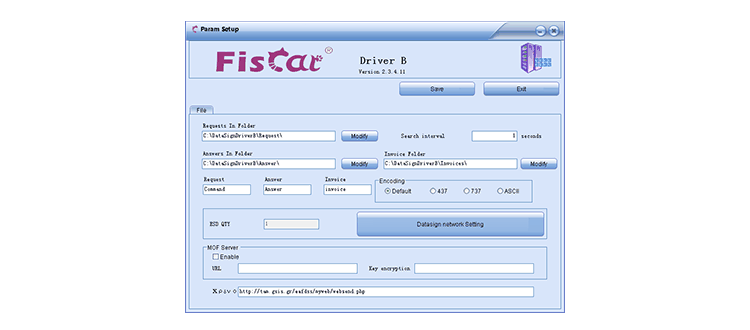

driver B

Software tool

Our DataSign driver is provided to complete your system fiscalization and process your daily transactions.
Specifications
Processor STM32F
Working memory RAM 32MB
System memory ROM 128MB
Operating System uCOSII
Fiscal Memory MCU + 1MB
Operator display OLED display (128x64)  4 lines*16 characters
Printer Thermal printer 80mm/s
Paper roll 57mm width x 35mm diameter
keyboard 4 keys
Interfaces 1*RS232
1* Ethernet LAN, Type RJ-45℅1 100Mbit
1* MINI USB
Power supply AC input: 110-230V, DC output: 7V, 3A
Main Battery NONE
Dimensions (L x W x H) 135*85*45 mm (L*W*H)
Weigth 0.23kgs
Operating temperature 0°C – + 45°C
Storage temperature -20°C – + 60°C
