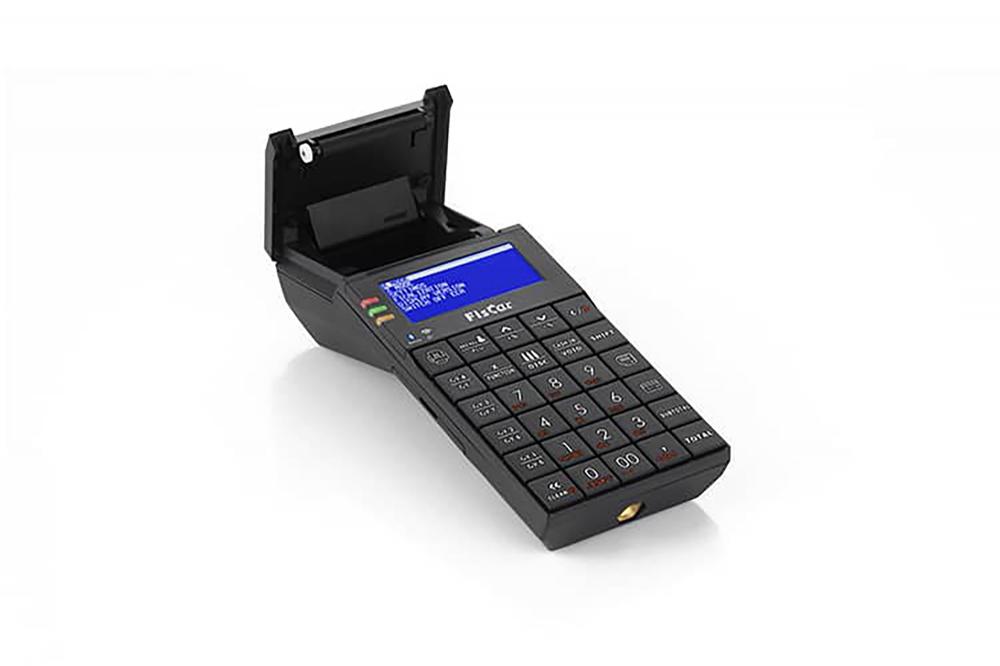

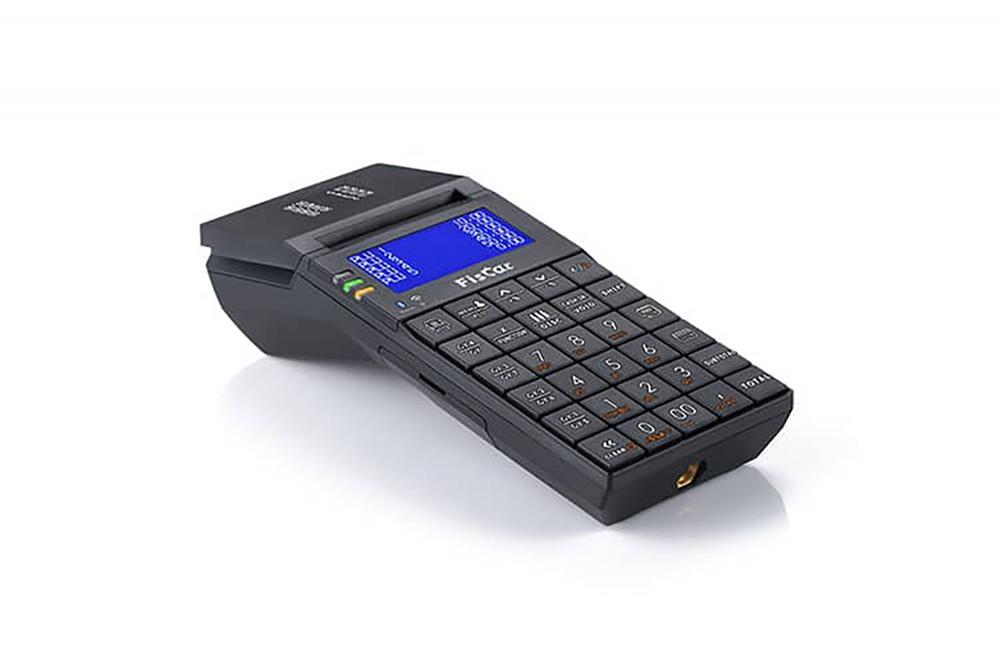

New Mobile POS ECR

for outdoor business

Galaxy

is a new innovative mobile sales terminal, with the enlarged inbuilt battery, it is an ideal solution for dynamic vendors who work in an open area, e.g. in bazaars, door-to- door selling and all kinds of services where a small device is required.

upgraded design

advanced all-in-one ECR

Display

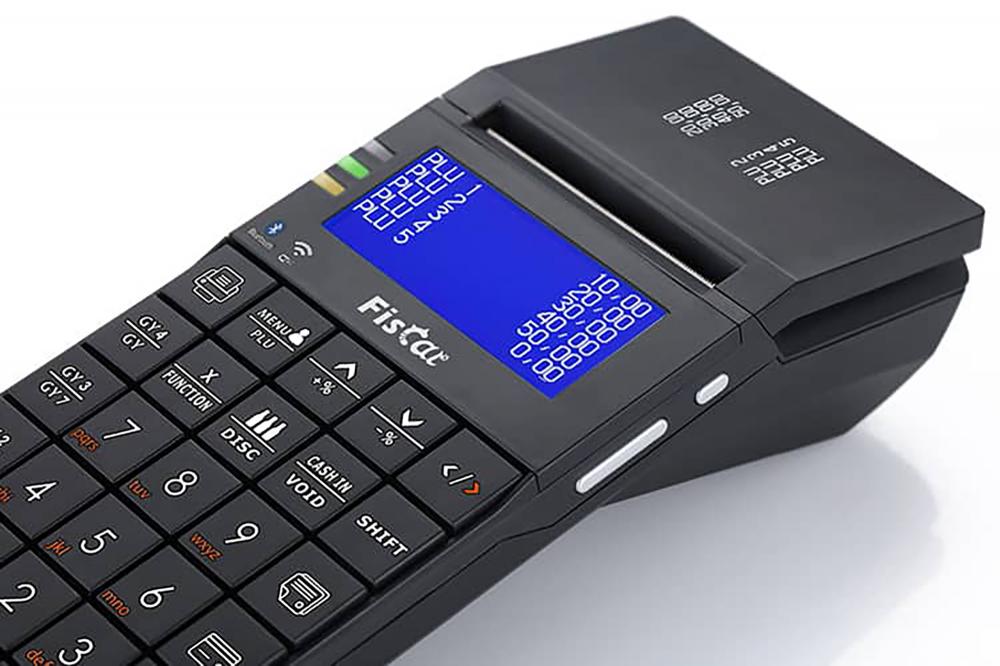

• 6 line big LCD user displays
• 4 lines big OLED client display

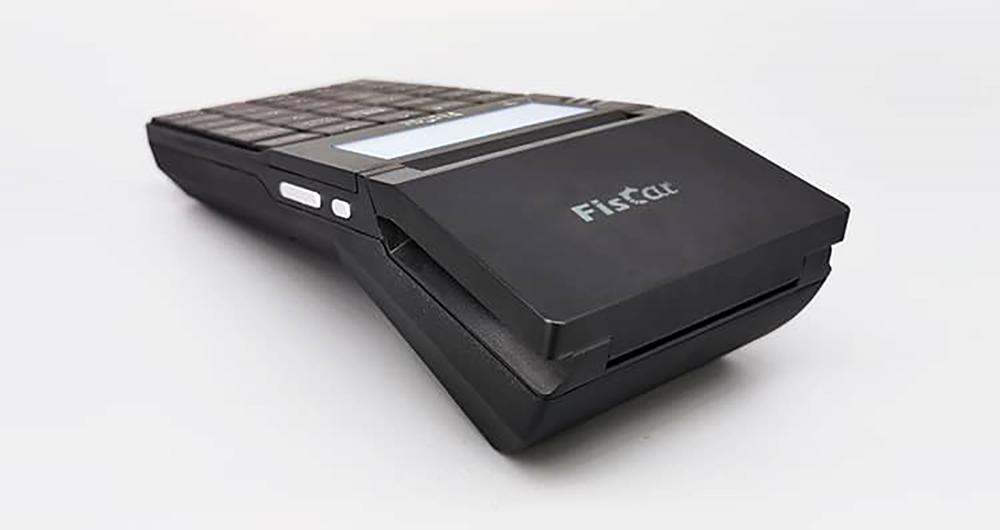

• Graphic logo display
• clear vision in darkness

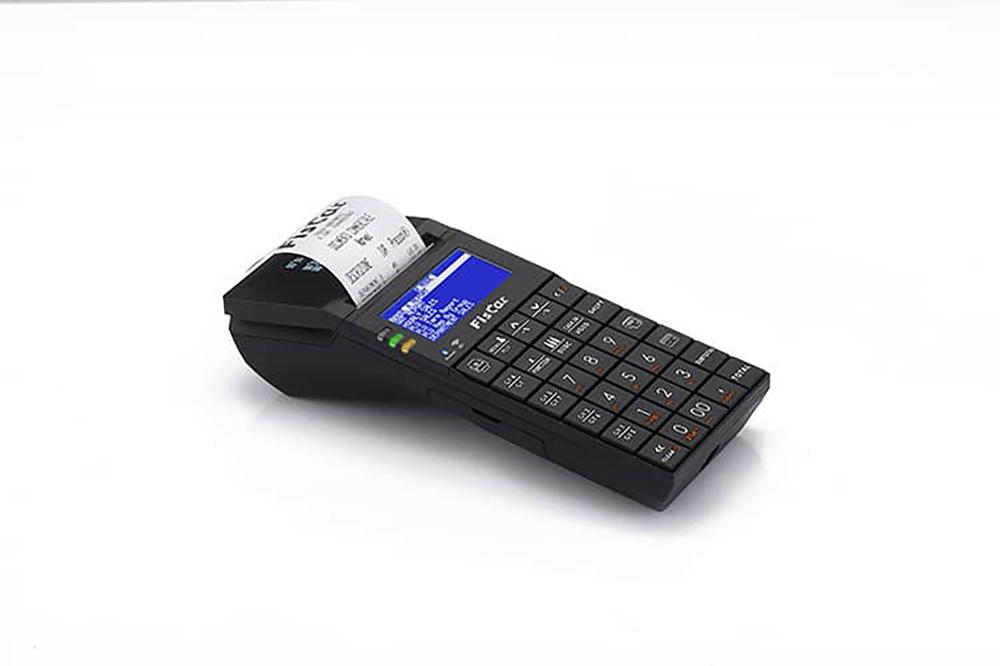

Printer

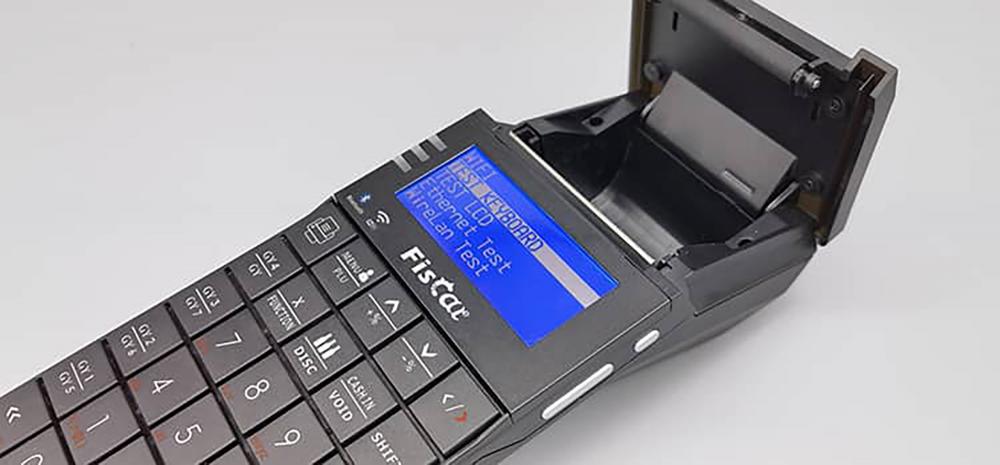

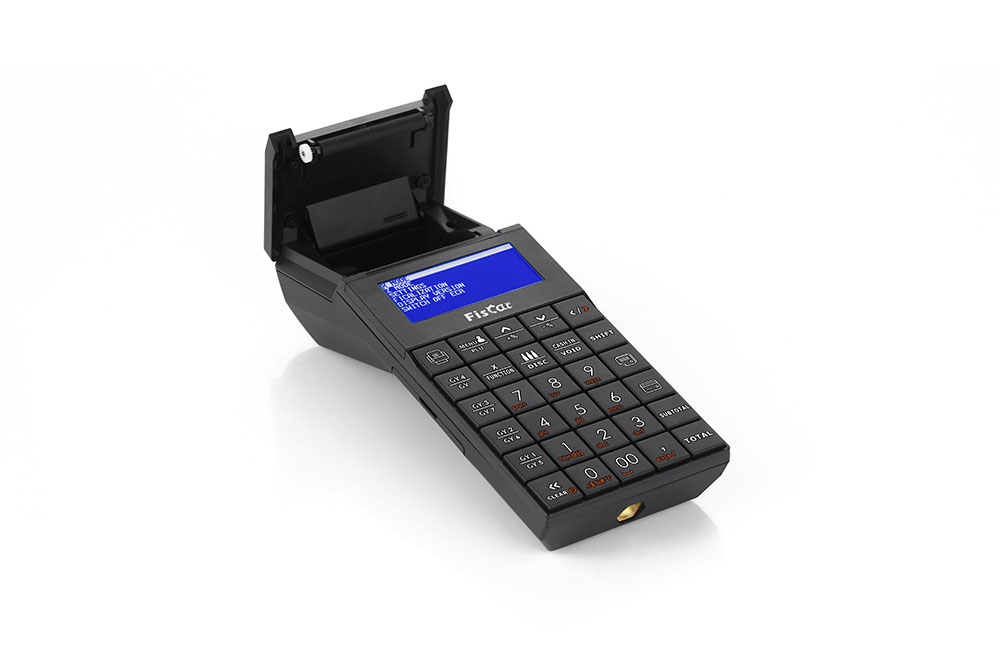

• easy-load paper design
• fast printing 100mm/s

Keyboard

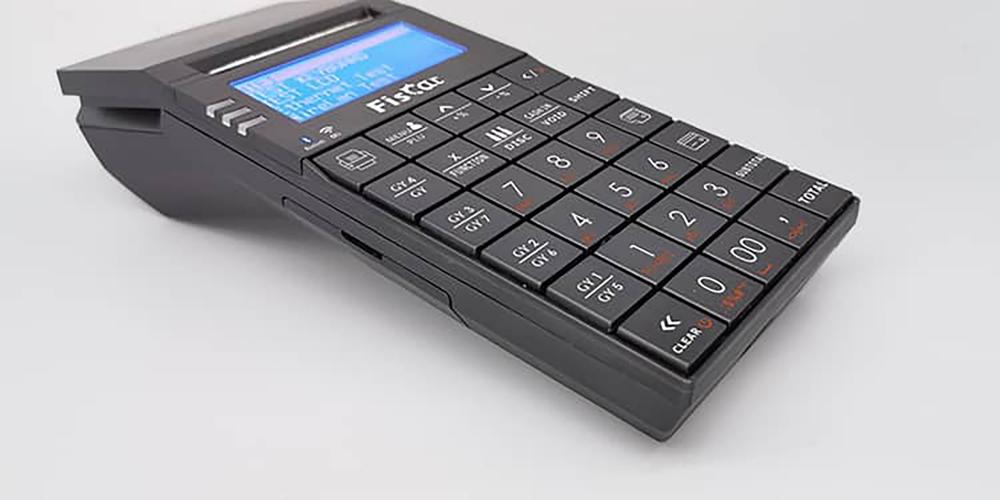

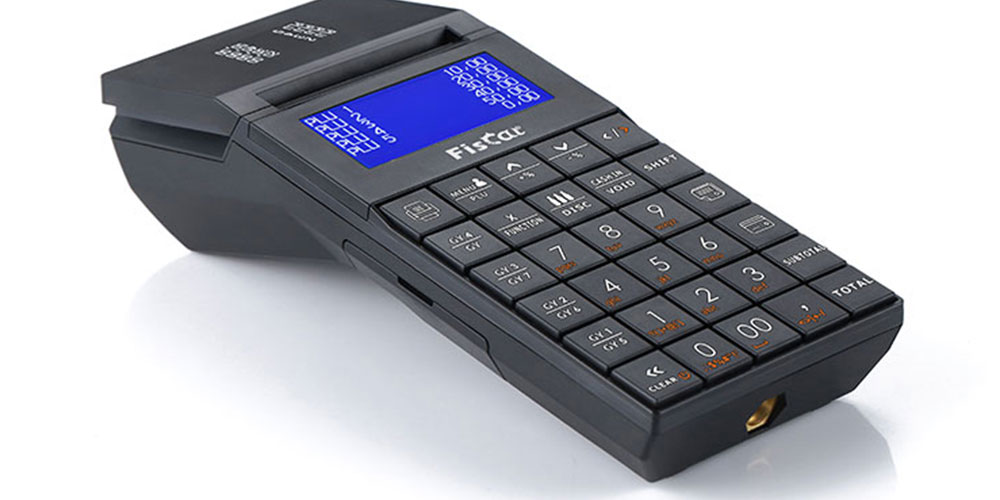

• ultra comfortable keycaps
• water-resistant design for the open air work environment

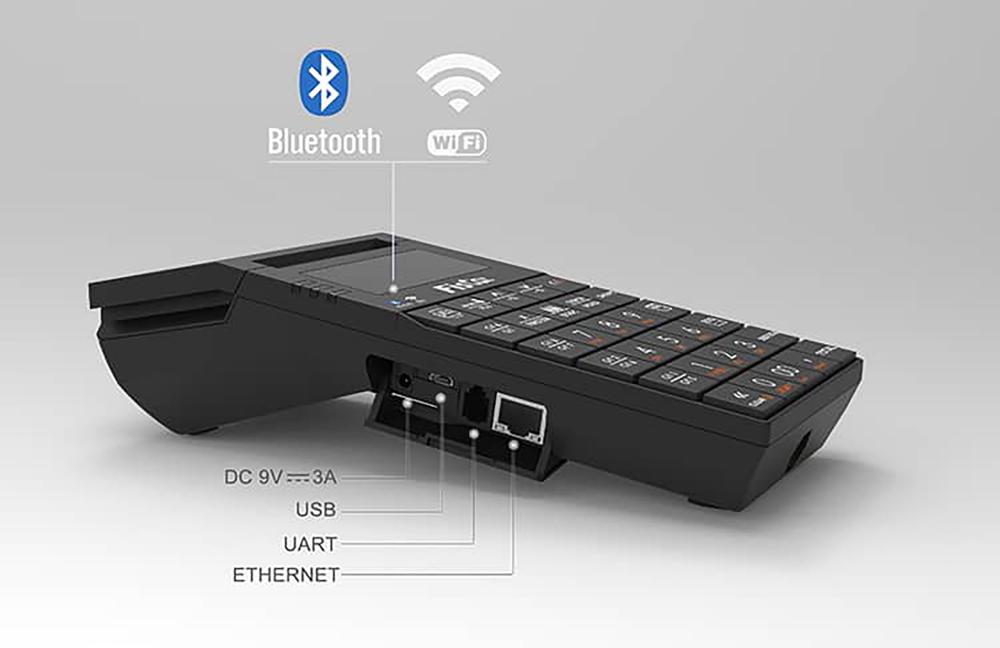

Interface

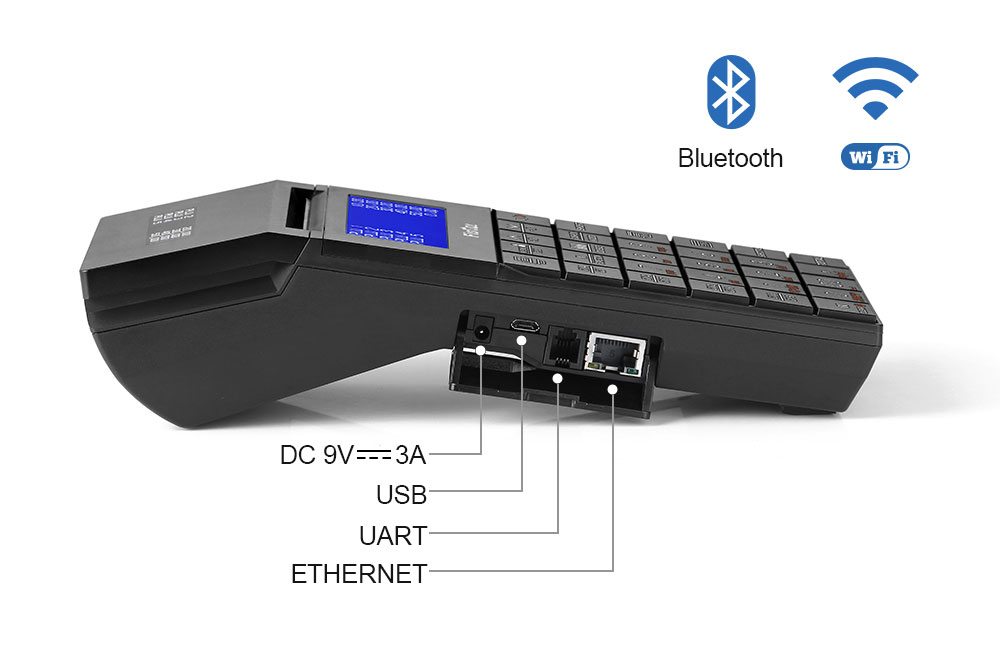

• convenient ports connection on the side
• wifi and bluetooth inbuilt
• GPRS inbuilt

scanner

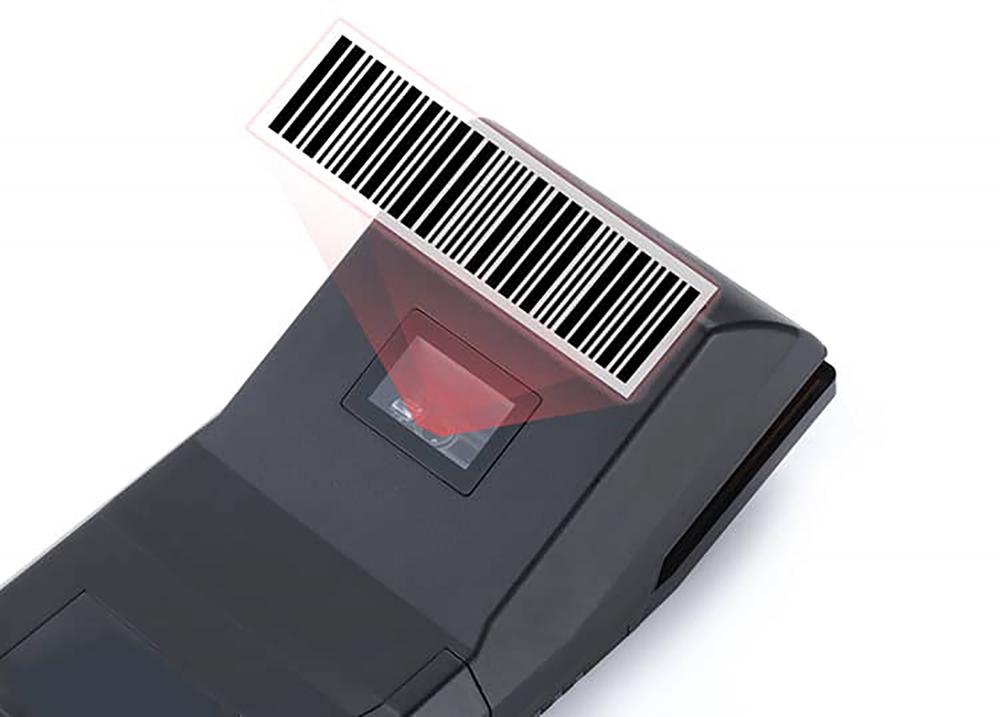

• inbuilt scan 1/2 D barcode

Battery

• inbuilt lithium battery
• Least > 8 hours stand-alone operation
• Low battery alarm

Specifications

Processor	ARM9 300Mhz
Working memory RAM	32MB
System memory ROM	128MB
Operating System	Linux 4.2
Electrical Journal	16GB TF Card
Fiscal Memory	MCU + 4MB
Operator display	LCD display (128x240) 4 lines*20 characters
Customer display	OLED display(64x128) 4 lines*16 characters
Printer	Fast thermal printer 100mm/s
Paper roll	57mm width x 40mm diameter
keyboard	30 keys
Interfaces	1*RS232
	1* Ethernet LAN, Type RJ-45℅1 100Mbit
	1*USB - OTG
Wifi	IEEE802.11 b/g/n
Optional Features	NFC module, ISO 14443 Part 4 Type A and B cards and MIFARE series
	LTE 4G
	Qr code Scanner
Power supply	AC input: 110-230V, DC output: 9V, 3A
Main Battery	Lithium battery 7.4V, 2,6Ah
Dimensions (L x W x H)	222.589.258.5 mm (LWH)
Weigth	0.55 kgs
Operating temperature	0°C – + 45°C
Storage temperature	-20°C – + 60°C
Accessory	Cash drawer CH330 / CH 410
Accessory	Barcode Scanner 3308SR, 2208 SR
