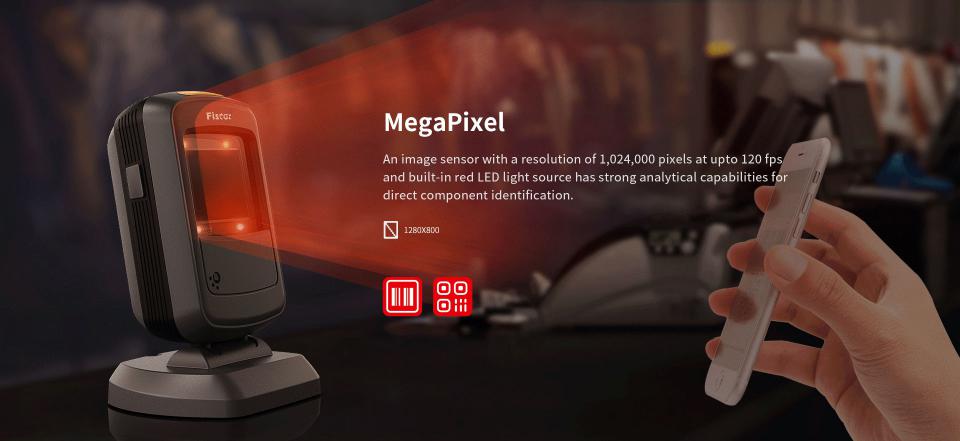

| Pixel | 1280x800 |

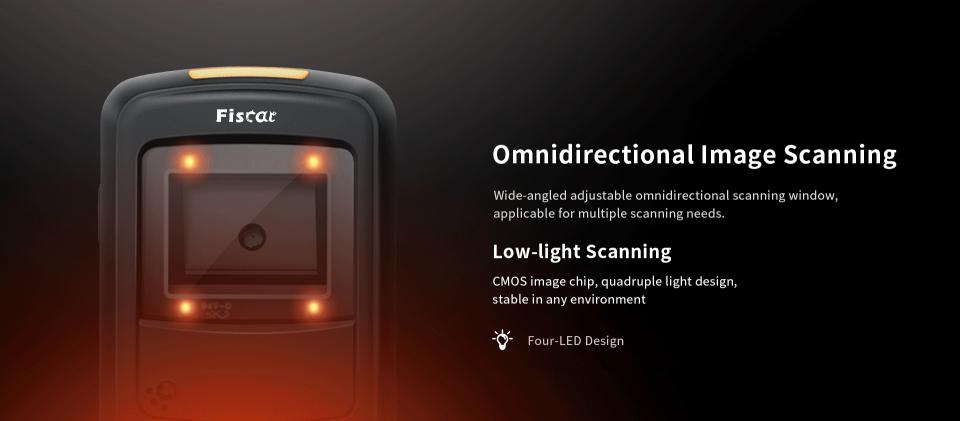

| Illumination | Red LED |
| Symbologies |
2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc. 1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14、RSS-Limited、RSS-Expand, etc. |
| Resolution | ≥4mil |
| Typical DOF | 13mil ENA: 0mm-130mm 5mil code 39: 0mm-60mm 20mil QR: 0mm-70mm Mobile payment code(5.5 inch screen): 0mm-200mm |
| Recognition Sensitivity | Pitch±60º, Tilt360º, Skew±60º |
| FOV | Horizontal: 51 °, Vertical: 40 ° |
| Symbol Contrast | ≥20% |
| Dimension(mm) | 90 (D) *79 (W) *142(H) |
| Weight | 285g |
| Notification | Buzzer, LED Indicator |

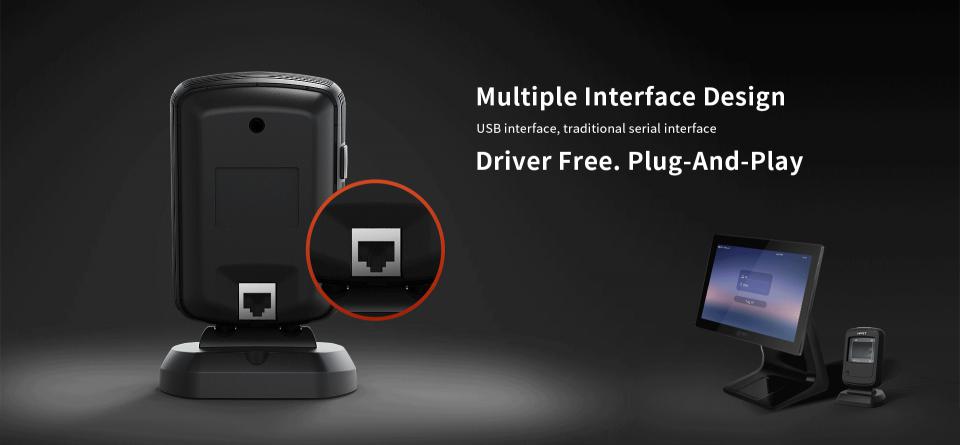

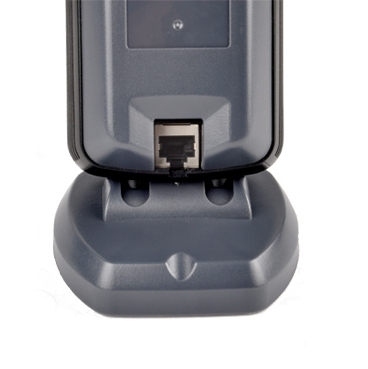

| Interfaces | RS-232 Serial Port, USB, USB Virtual Serial Port |

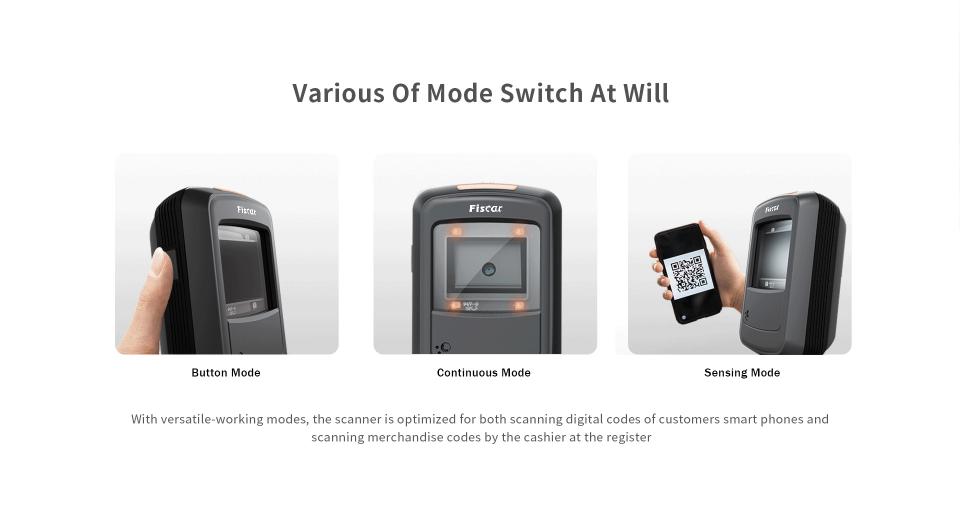

| Trigger Method | Manual keystroke, induction recognition, continuous recognition |
| Operating Voltage | 5VDC±10% |
| Operating Current | Standby: 140mA, Working: 245mA |
| Operating Temperature | -20 ℃~+50℃ |
| Storage Temperature | -40℃~+70℃ |
| Relative Humidity | 5%~95%（No Condensation） |
| ESD | ±15 kV（Air discharge ） ±8 kV（Direct discharge） |
| Environment Luminosity | 0~100, 000LUX |
| Certification | CE FCC ROHS |
| Test Condition | Environment temperature: 23ºC Environment illumination: 300LUX filament lamp DOF depends on the resolution, contrast of the printing codebar, and the environment illumination |
