HOME Product Fiscal Signature Device Fiscal E Signature Device ISign
iSign
OverviewTechnical Data
Fiscal E-Signature Device
Electronic Signature Device
4G ESD
Mobile ESD

Fiscal E-Signature Device (ESD)

Fiscal E-Signature Device

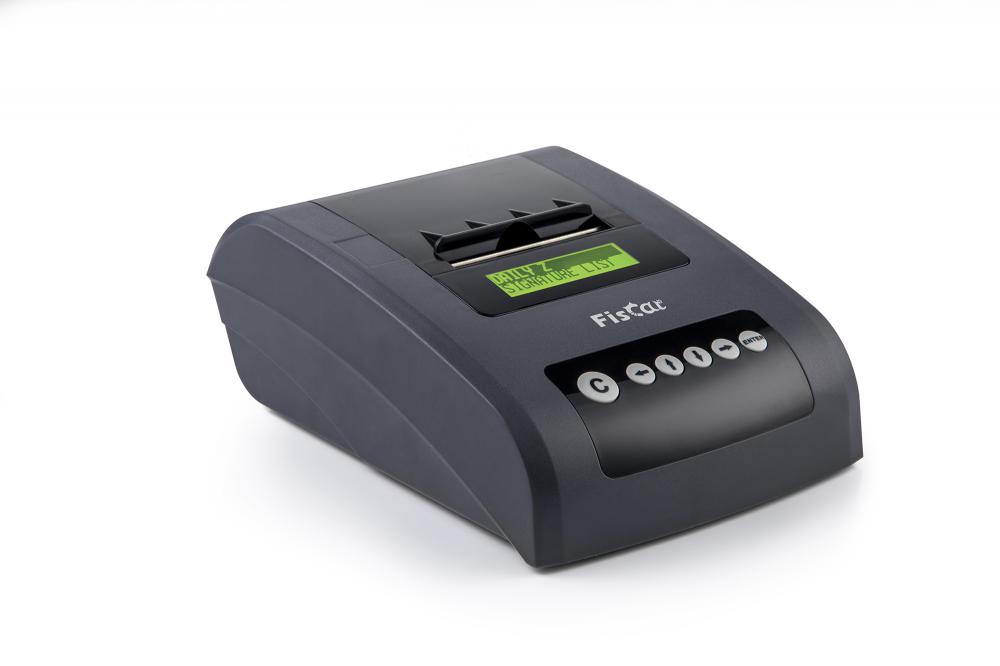

Electronic Signature Device

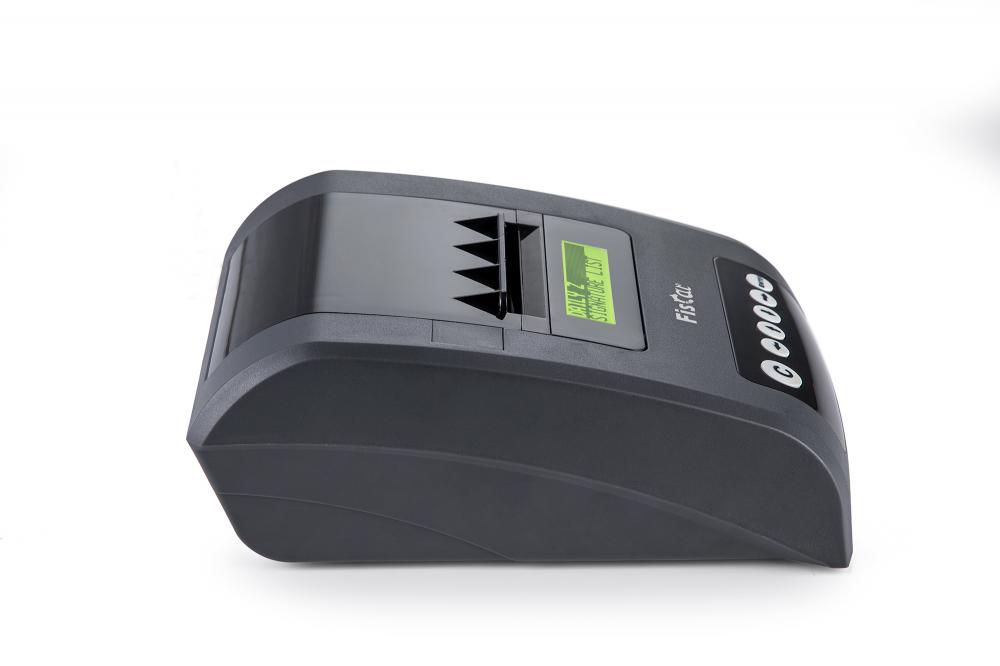

4G ESD

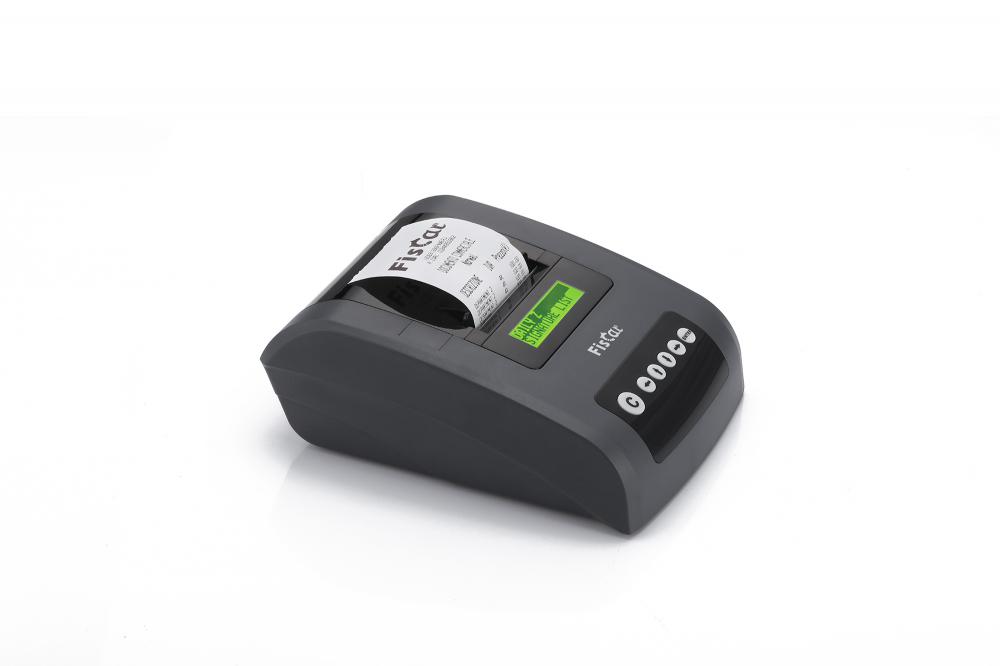

Mobile ESD

iSign

is our upgraded fiscal signature device, it was evolved to contain bigger paper roll and more space for GPRS inbuilt. To convert your non-fiscal POS system into fiscal system, without any hardware changes, we provide Driver A and Driver B for different business operations. It is a customized product for your project.

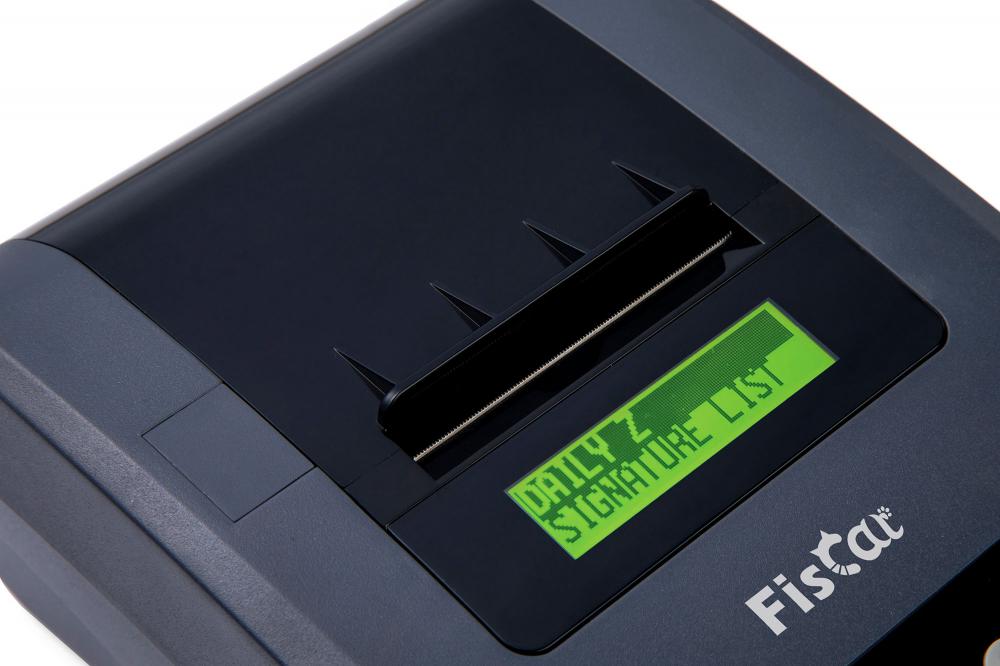

Fiscal Device

Highlight

Display

• highlight LCD display

• 2-line display

• clear vision in darkness

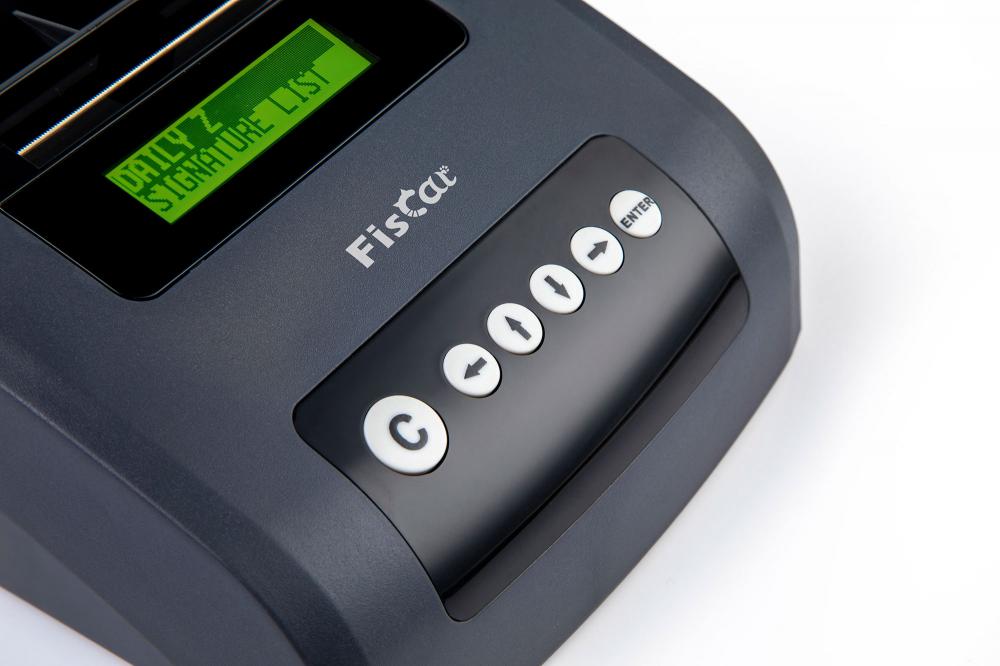

Wifi Electronic Signature Device

Keys

• 4 key buttons for menu navigation

Wifi Electronic Signature Device
Wifi Electronic Signature Device

Printer

• easy-load paper design

• 58mm x 50 mm (diameter) paper roll

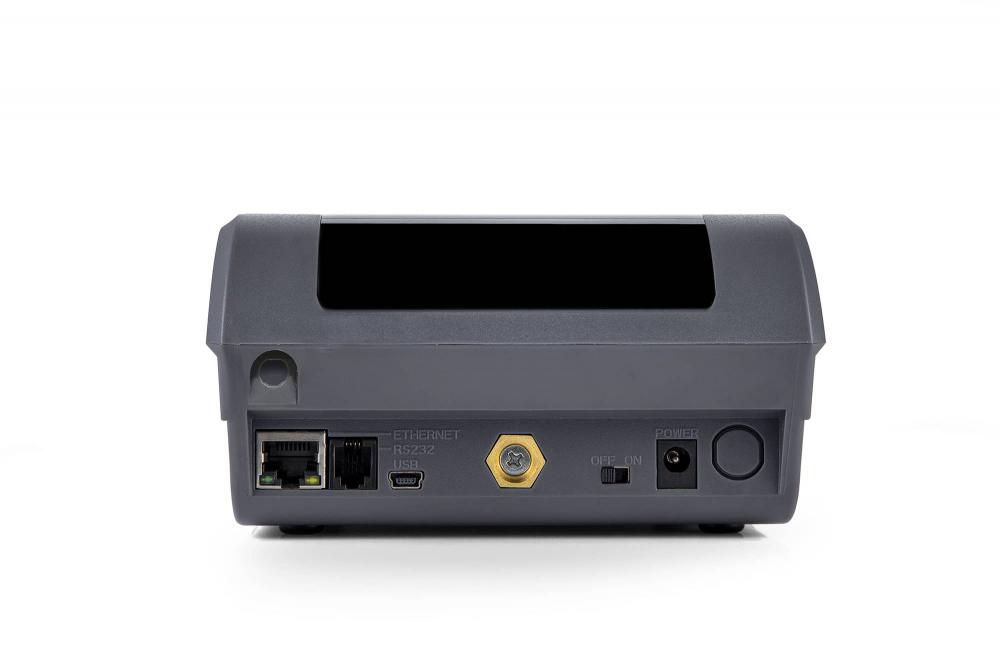

Bluetooth Electronic Signature Device

Interface

• 1 ethernet

• 1 USB

• 1 RS232

• Wifi, bluetooth inbuilt

• GPRS inbuilt


Bluetooth Electronic Signature Device

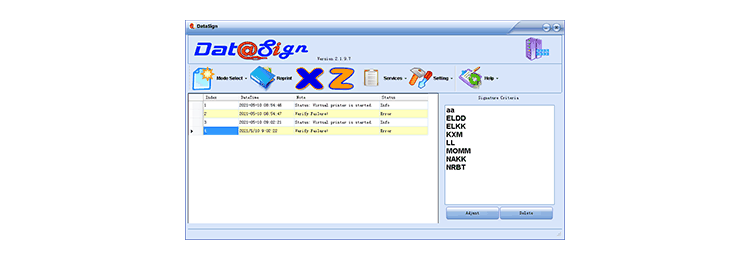

driver A

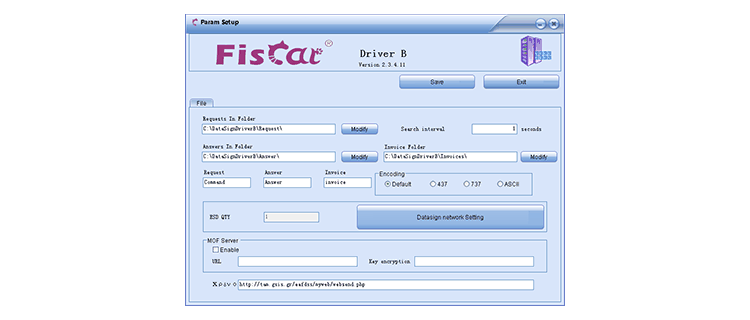

driver B

Software tool

Our DataSign driver is provided to complete your system fiscalization and process your daily transactions.
Specifications
Processor STM32F
Working memory RAM 32MB
System memory ROM 128MB
Operating System uCOSII
Fiscal Memory MCU +MB
Operator display LCD display (1>28x32) 2 lines*16 characters
Printer Thermal printer 80mm/s
Paper roll 57mm width x 50mm diameter
keyboard 6 keys
Interfaces 1*RS232
1* Ethernet LAN, Type RJ-45℅1 100Mbit
1* MINI USB
Optional Features GPRS module 2G/3G/4G
Power supply AC input: 110-230V, DC output: 7V, 3A
Dimensions (L x W x H) 210*140*77 mm (L*W*H)
Weigth 0.62kgs
Operating temperature 0°C – + 45°C
Storage temperature - 20°C – + 60°C
